Fig. 6

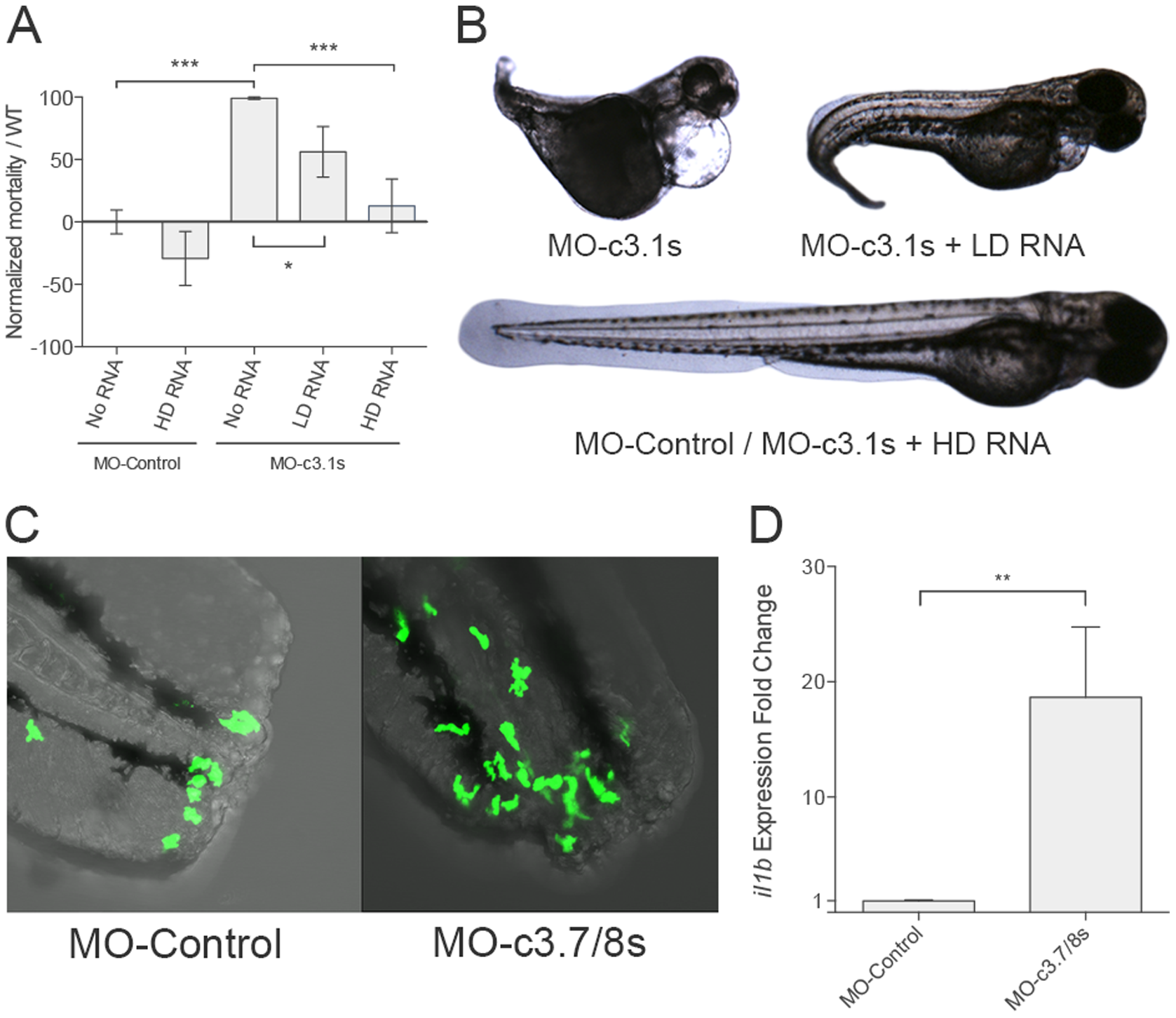

Developmental and inflammatory effects of the c3.1 and c3.7/8 inhibition.

(A) MO-c3.1s injected at high concentrations produced aberrant phenotypes and increased mortality. Co-injecting with c3.1 capped mRNA recovered the WT phenotype in a dose-dependent manner (LD: 2,25 ng c3.1 capped RNA; HD: 4,5 ng c3.1 capped RNA). (B) Representative individuals of the c3.1 inhibition treatments and its phenotypic rescue. (C) MO-c3.7/8s microinjected larvae showed a major migration number of neutrophils to the amputation site 3 h after tail clipping (confocal images). Statistical significance was determined by unpaired T-tests (**P<0.01, ***P<0.001). (D) MO-c3.7/8s microinjected larvae significantly expressed higher levels of il1b 3 h after bath infection with A. hydrophila.

Figure Data

Expression / Labeling details

Phenotype details
