Fig. 5

ID
ZDB-IMAGE-140313-17
Genes
Source
Figures for Heisenberg et al., 1999
Figure Caption

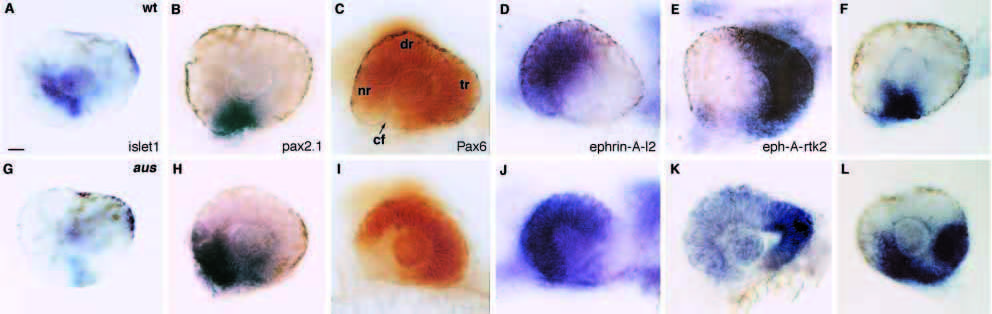

Fig. 5 Gene expression is altered in the retinae of aus mutant embryos. Lateral views of eyes of wild-type (top row) and aus mutant (bottom row) prim-12 stage embryos. (A,G) islet1. Expression is reduced in the aus mutant embryo. (B,H) noi (pax2.1). Expression is expanded in the ventral retina of the aus mutant embryo. (C,I) Pax6. Expression is reduced in the ventral retina of the aus mutant embryo. (D,J) ephrin-A-l2. Expression is expanded into the temporal retina of the aus mutant embryo. (E,K) eph-A-rtk2. Expression is reduced in the temporal retina of the aus mutant embryo. (F,L) net1a. Expression is expanded in the ventral retina of the aus mutant embryo. Abbreviations: cf, choroid fissure; dr, dorsal retina; nr, nasal retina; tr, temporal retina. Scale bar: 25 μm.
