Fig. 4

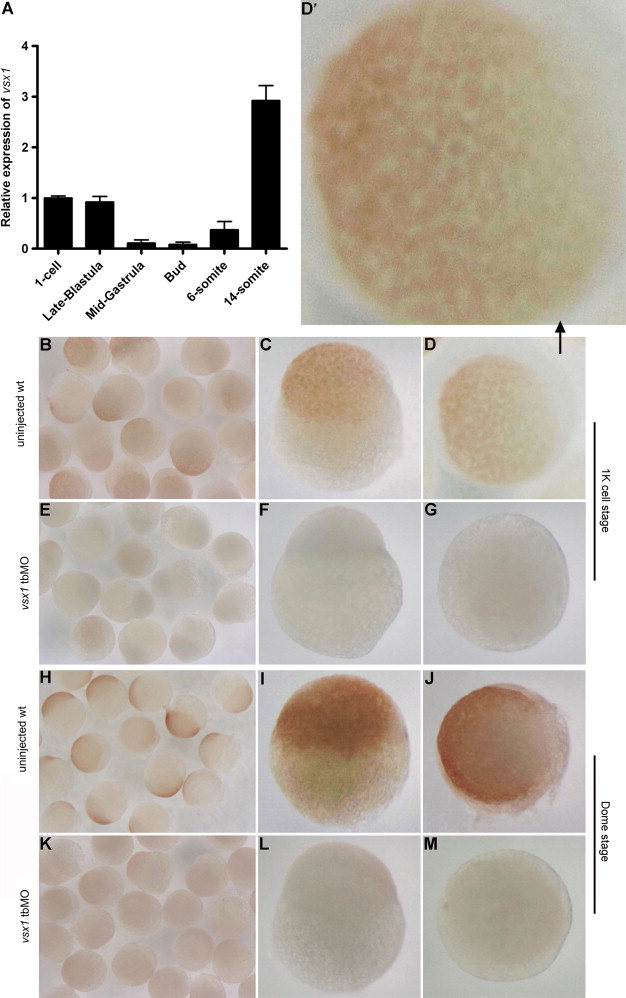

Expression pattern of vsx1 during early embryogenesis. (A) Expression profile of vsx1 mRNA during early embryogenesis. Results are expressed as mean±SEM. (B–M) Localization of maternal Vsx1 protein in uninjected wild type control and vsx1 tbMO injected embryos at 1k cell (B–G) and dome stages (H–M). (C, F, I and L) Lateral view of embryos with animal pole towards the top and dorsal towards the right. (D, D′, G, J and M) Animal pole view of the embryos with dorsal towards the right. D′ is the magnified image of D, in which one can see that Vsx1 protein is localized in the nuclei of the blastomeres.
