Fig. 3

ID
ZDB-IMAGE-140304-33
Genes
Source
Figures for He et al., 2014
Figure Caption

Fig. 3

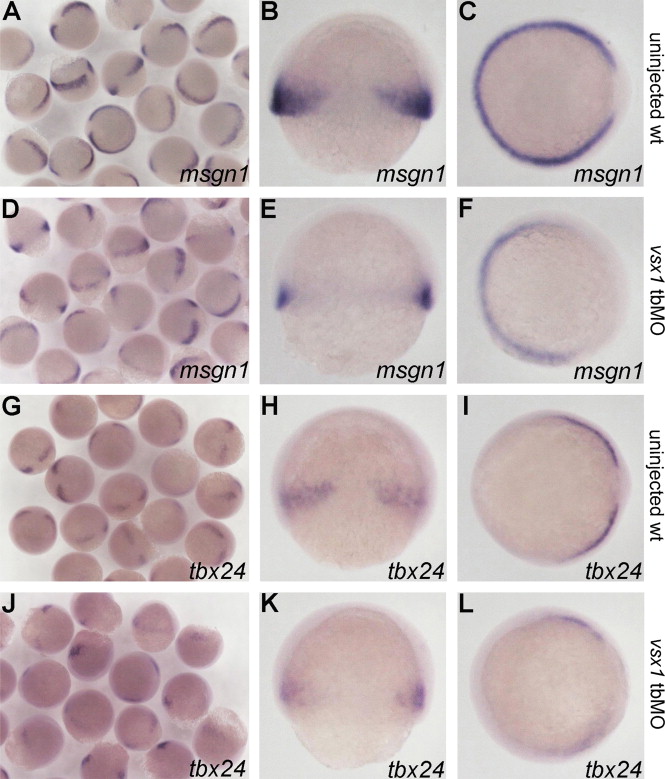

Maternal Vsx1 is essential for promoting normal paraxial mesoderm specification. (A–F) comparison of msgn1 expression between uninjected wild type control (A–C) and maternal vsx1 tbMO injected embryos (D–F). (G–L) Comparison of tbx24 expression between uninjected wild type control (G–I) and maternal vsx1 tbMO injected embryos (J–L). Riboprobes are indicated at the bottom of each figure. (B, E, H and K) Dorsal view of embryos with animal pole towards the top. (C, F, I and L) Animal pole view of the embryos with dorsal towards the right.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 386(1), He, Y., Xu, X., Zhao, S., Ma, S., Sun, L., Liu, Z., and Luo, C., Maternal control of axial-paraxial mesoderm patterning via direct transcriptional repression in zebrafish, 96-110, Copyright (2014) with permission from Elsevier. Full text @ Dev. Biol.
