Figure Caption
Fig. 5

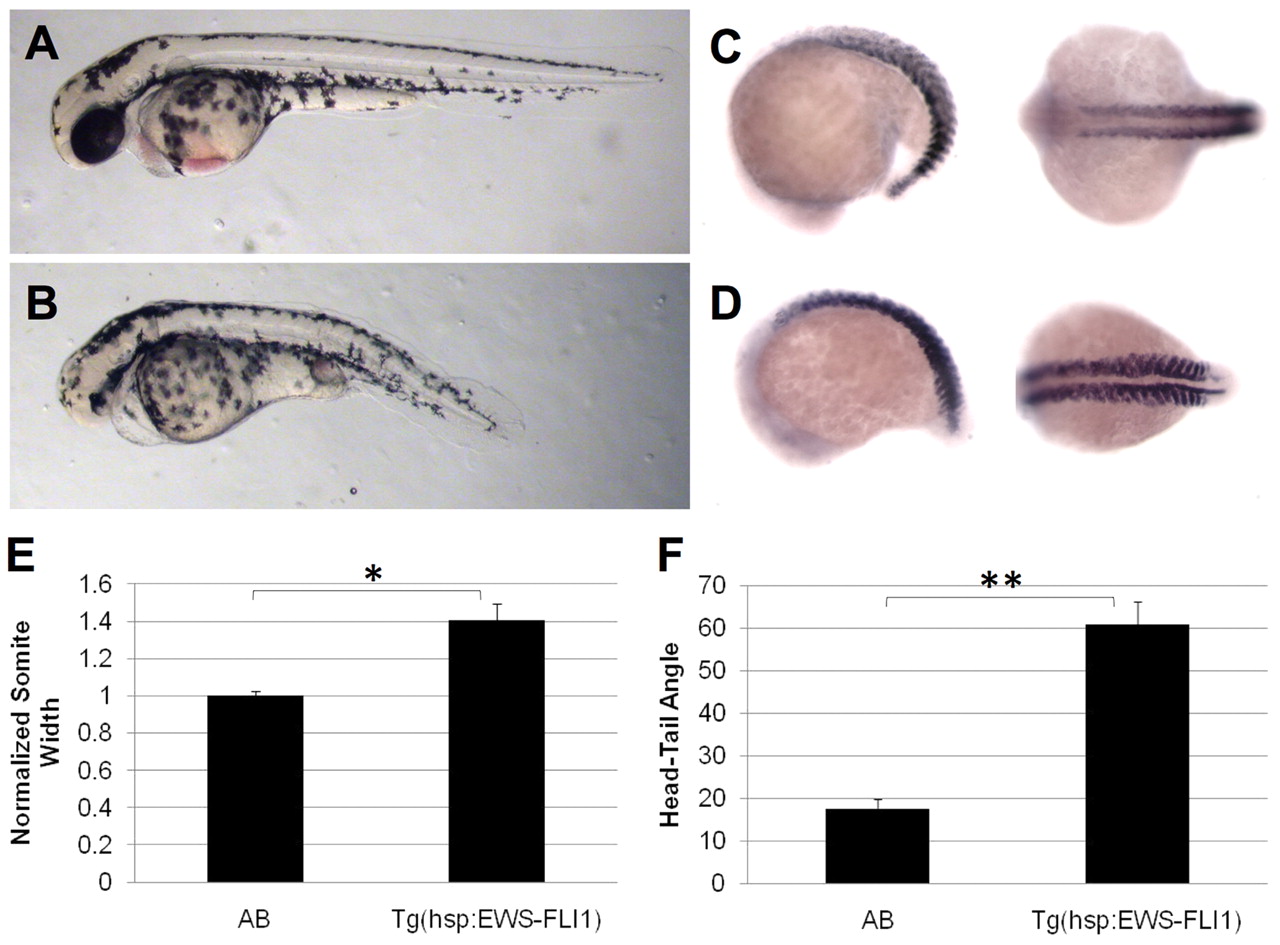

EWS-FLI1 affects convergence and extension in zebrafish embryos. Heat-shocked control (A) and EWS-FLI1 transgenic (B) embryos at 2 d.p.f. reveals that transgenic embryos are shorter with reduced head development. At the 18 somite stage, in situ hybridization for myoD in heat-shocked control (C) and EWS-FLI1 transgenic (D) reveals a wider somite width (E) and a shorter anterior-posterior axis as measured by the angle between the head and tail (F) in transgenic embryos (*P<0.02, **P<0.001; error bars indicate s.e.m.).
Figure Data
