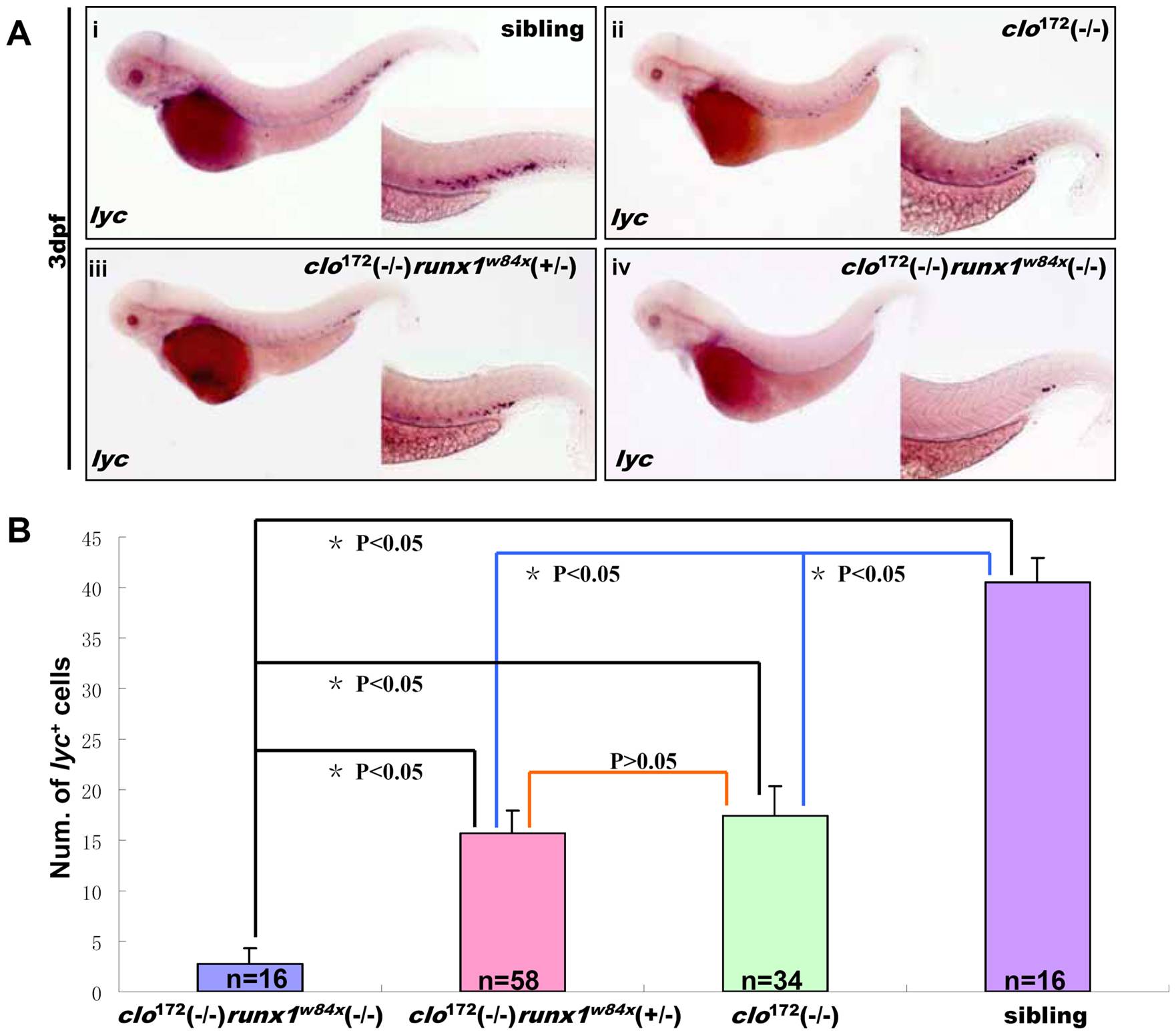

Fig. 5 Analysis of the origin of definitive myeloid cells in clo¹⁷² mutant.

(A, B) lyc expression pattern at 3 dpf runx1/clo¹⁷² double mutant (A). WISH of lyc expression in siblings (A–i), clo¹⁷² mutant (A–ii), clo¹⁷² (-/-) runx1 (+/-) ^w84x (A-iii), double homozygous mutant (A–iv). Histogram of lyc⁺ cells number (means) in siblings(B, purple column), clo¹⁷² mutant (B, green column), clo¹⁷² (-/-) runx1 (+/-)^w84x (B, pink column) and double homozygous mutant (B, blue column). There are significant differences between double mutant and other groups (*p<0.05), but no difference between clo¹⁷² mutant and clo¹⁷² (-/-) runx1 (+/-) ^w84x group (p>0.05). The corresponding case numbers were shown by n in column.
