Figure Caption
Fig. 6

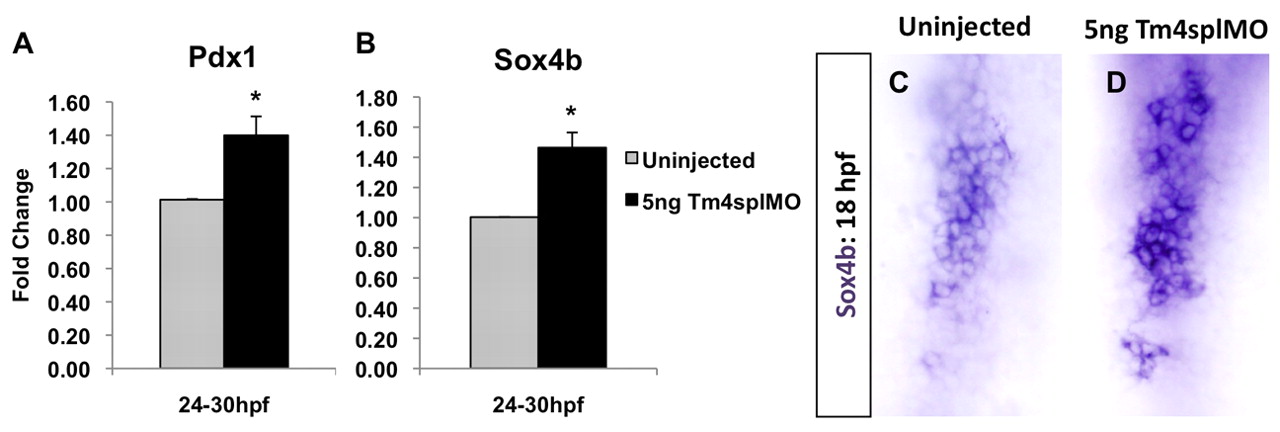

pdx1 and sox4b expression are increased in tm4sf4 morphant zebrafish embryos. (A,B) mRNA levels were measured at 24-30 hpf comparing uninjected embryos (gray) and tm4sf4 morphants (black) for pdx1 (A) and sox4b (B) by qRT-PCR. Error bars represent s.e.m. *P<0.05. (C,D) sox4b expression pattern was analyzed by in situ hybridization at 18 hpf.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Development
