Fig. 2

ID
ZDB-IMAGE-110128-20
Genes
Source
Figures for Xu et al., 2010
Figure Caption

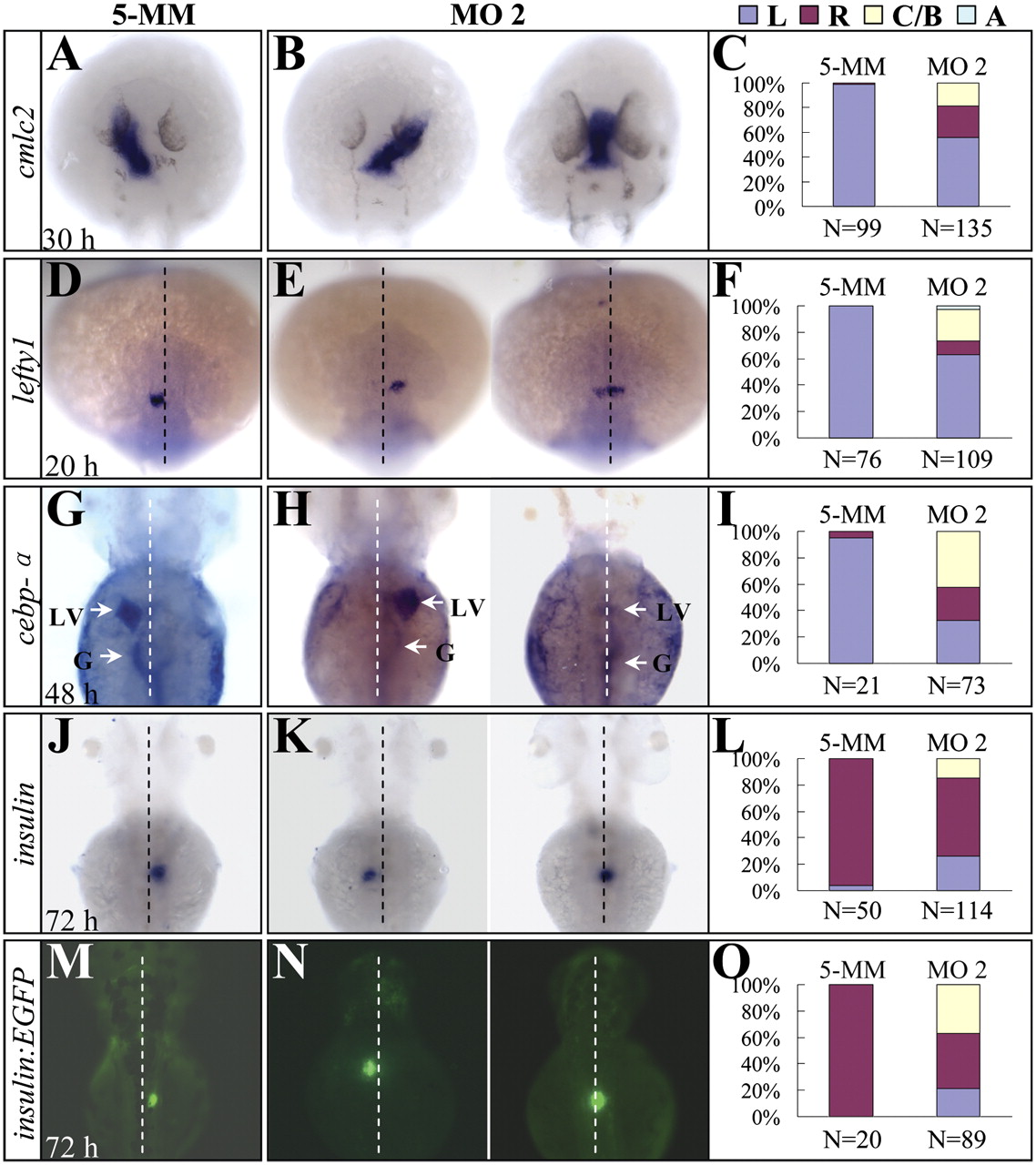

Fig. 2 Organ laterality is randomized in setdb2-knockdown embryos. (A?L) Whole-mount mRNA in situ hybridization and statistical analyses of visceral and diencephalic laterality in the 5-MM control and setdb2 MO2-injected embryos at the indicated developmental stages with probes cmlc2 (A?C), lefty1 (D?F), cebpα (G?I, arrows), and insulin (J?L). (M?O) Determination of pancreatic laterality in 72-hpf Tg(insulin:EGFP) transgenic embryos injected with 5-MM control and setdb2 MO2. Dashed lines denote the embryonic midline. LV, liver; G, gut; L, Left side; R, Right side; C/B, central or bilateral; A, absent. All embryos are dorsal views with head to the top.
