ZFIN Image: Kalousova et al., 2010, Fig. 2


Figure Caption

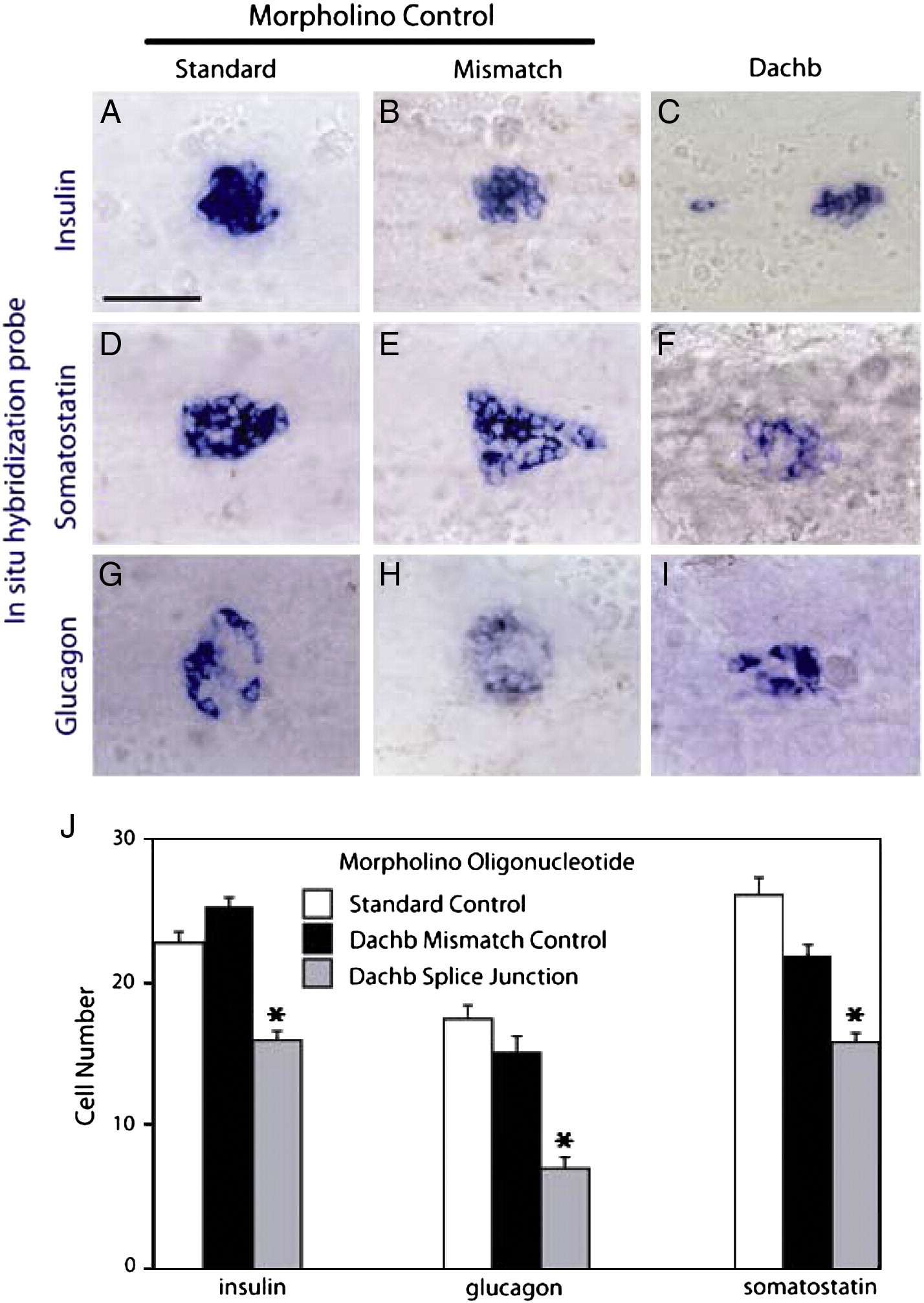

Fig. 2 Inhibition of DachB expression by morpholino antisense oligonucleotides. Expression of insulin (A–C), somatostatin (D–F) and glucagon (G–I) was analyzed by whole-mount in situ hybridization at 30 hpf embryos injected with the morpholino oligonucleotides shown: a standard control (A, D, G), a mismatch control with 4 bases altered from the complimentary dachb sequence (B, E, H), and an oligonucleotide complimentary to a dachb splice junction (C, F, I). All panels present ventral views of yolk-free embryos with anterior to the left. In panel J, the numbers of cells expressing the hormones shown were assessed in morpholino-injected embryos at 30 hpf. Each data point represents the mean ± standard error of at least 40 embryos for each condition. ***p < 0.001 compared with embryos injected with morpholino 4-mismatch control by Student′s t test. Scale bar, 50 μm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 348(2), Kalousova, A., Mavropoulos, A., Adams, B.A., Nekrep, N., Li, Z., Krauss, S., Stainier, D.Y., and German, M.S., Dachshund homologues play a conserved role in islet cell development, 143-152, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
