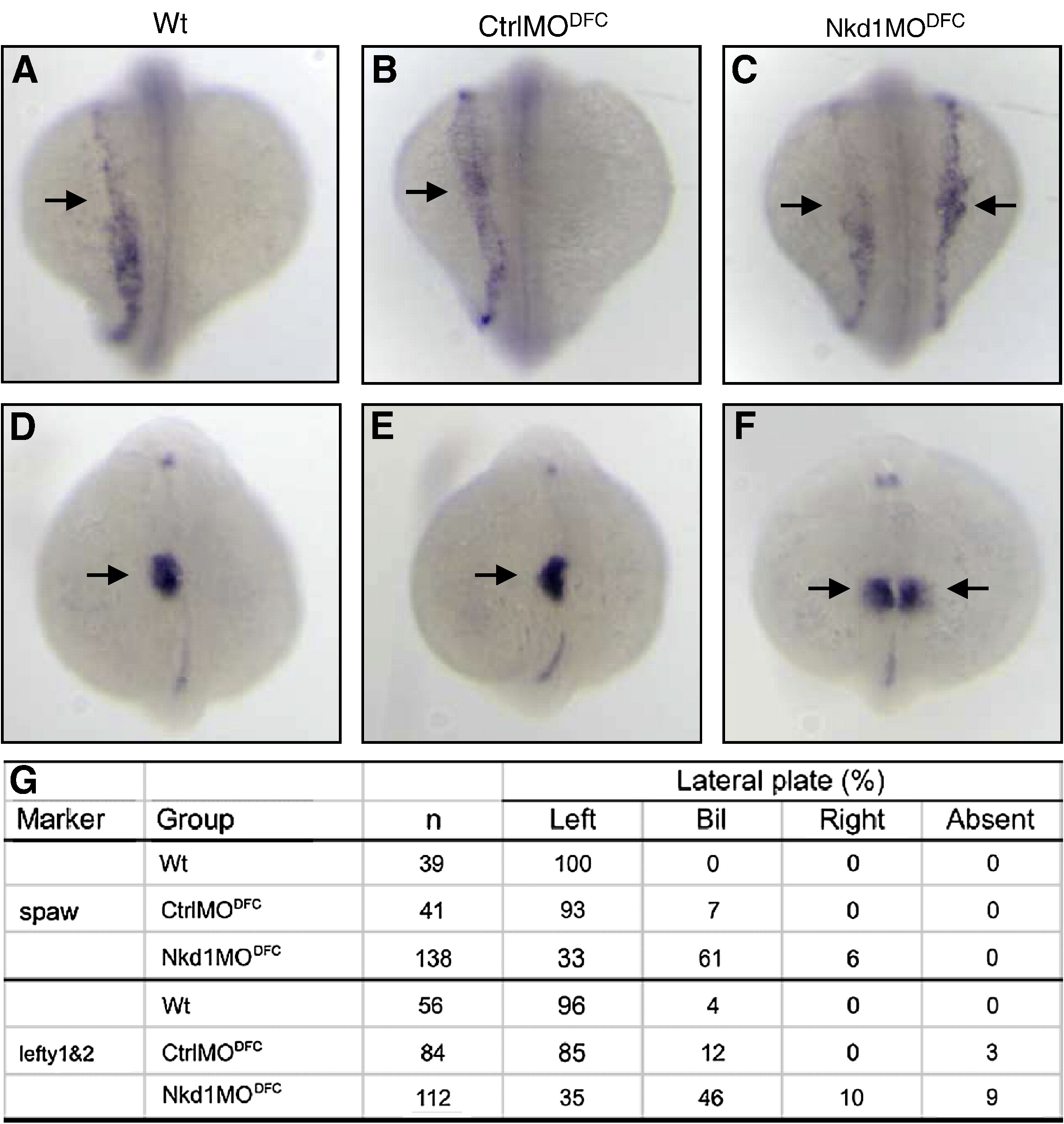

Fig. 5 Nkd1 is required for asymmetric expression in the LPM. (A–C) Arrows denote left-sided spaw expression in wt (A), CtrlMODFC (B), and bilateral expression in Nkd1MODFC (C). Arrows denote left-sided lefty1&2 expression in wt (D), CtrlMODFC (E), and bilateral expression in Nkd1MODFC (F). (G) Summary of spaw and lefty1&2 asymmetric gene expression patterns.
