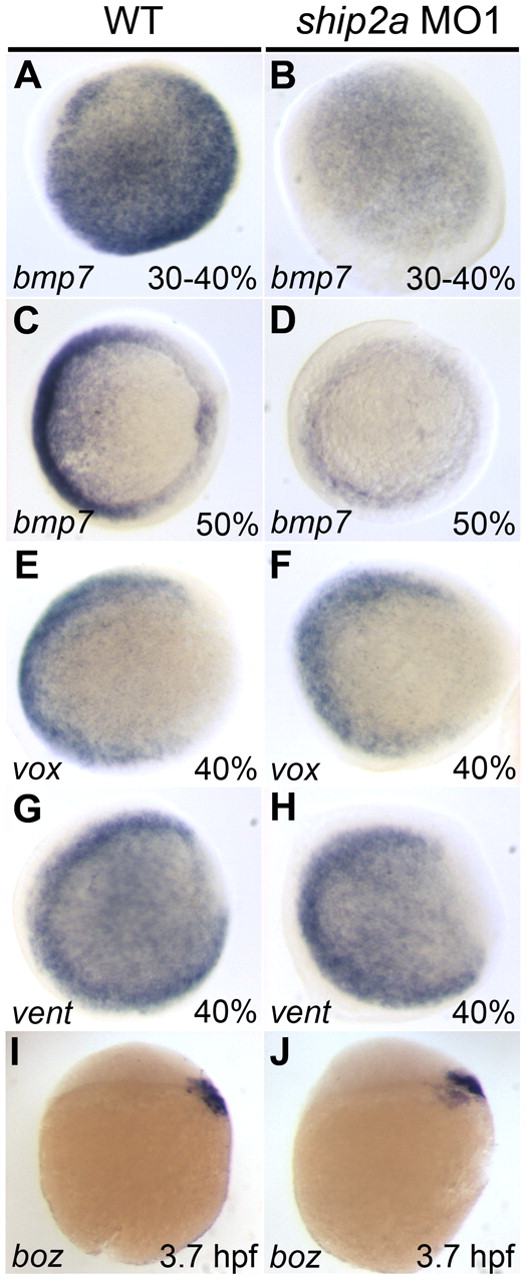

Fig. 3 Knockdown of maternal Ship2a alters BMP but not WNT signaling pathways. (A-D) Expression of bmp7 is reduced in 30-40% epiboly and 50% epiboly maternal ship2a morphants as compared with WT controls. (E-J) Gene expression that is dependent on the WNT signaling pathway is not affected in maternal ship2a-morphant embryos. Expression of vox (E,F) or vent (G,H) in 40% epiboly embryos, or bozozok (boz) (I-J) in oblong stage (3.7 hpf) embryos, is unchanged by depletion of maternal Ship2a. A–H, animal pole views with dorsal to the right; I and J, lateral views with animal pole up and dorsal to the right.
