Fig. S2

ID

ZDB-IMAGE-101013-6

Genes

tfap2e

Publication

Van Otterloo et al., 2010 - Differentiation of zebrafish melanophores depends on transcription factors AP2 alpha and AP2 epsilon

All Figures

Figures for Van Otterloo et al., 2010


Figure Caption

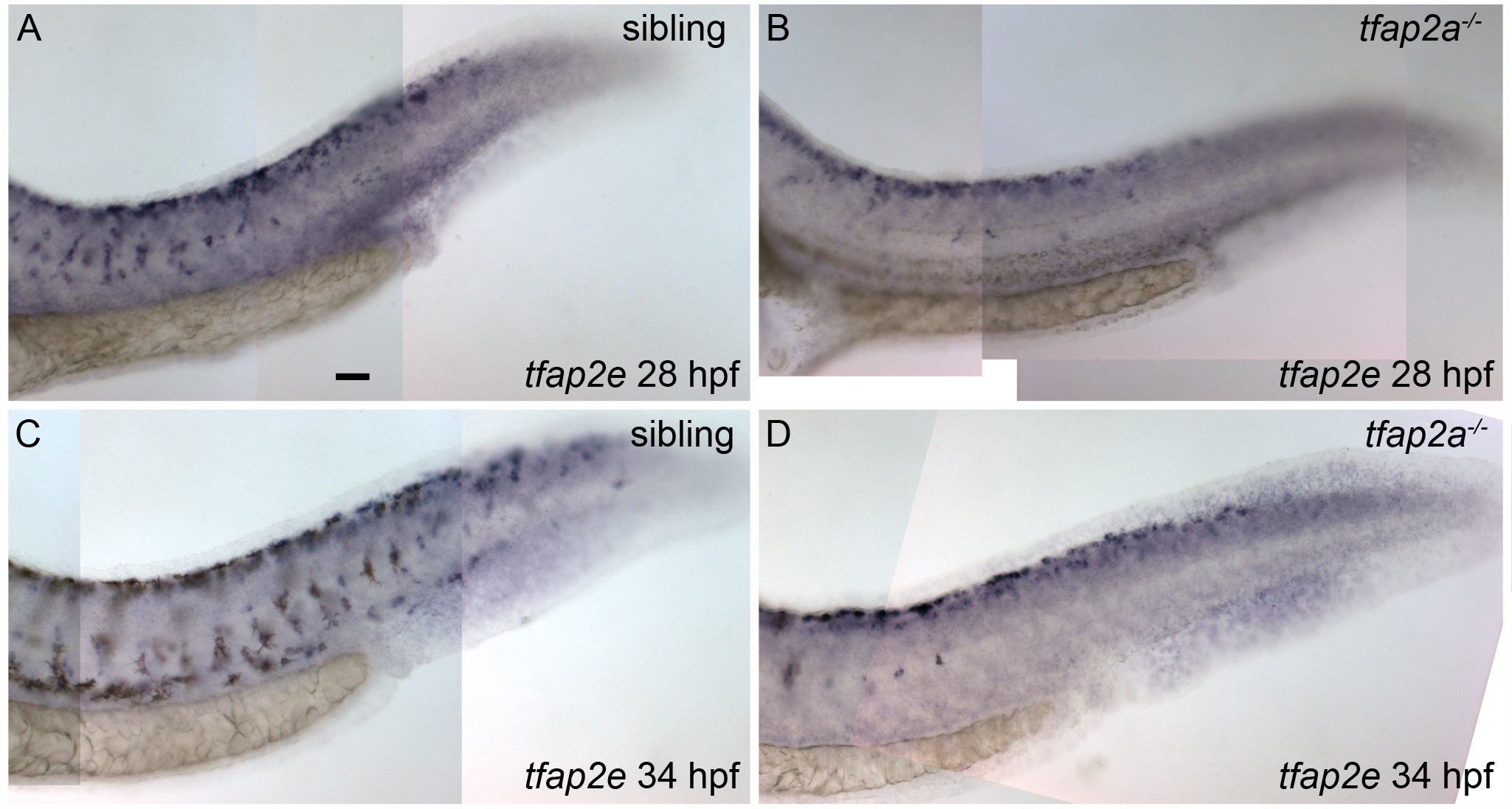

Fig. S2 Expression of tfap2e in tfap2a mutants. Lateral views of zebrafish embryos, fixed at the stage indicated and processed to reveal tfap2e expression by RNA in situ hybridization. (A) A sibling embryo at 28 hpf with tfap2e expression within melanoblasts, located throughout the trunk of the embryo, as described earlier. (B) A tfap2a mutant, in which tfap2e expression is detected within melanoblasts near the dorsum of the embryo; it is evident that fewer than normal numbers of tfap2e-expressing cells (presumed melanoblasts) have migrated ventrally. (C) Sibling and D) tfap2a mutant embryos at 34 hpf; tfap2e expression is detected in the posterior trunk of both sibling and mutant embryos, although fewer tfap2e-expressing cells have migrated ventrally in the tfap2a mutant. Embryos were treated with low levels of PTU to better visualize expression within melanophores. Scale bar: 25 μM.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Genet.
