Fig. 5

ID

ZDB-IMAGE-101007-12

Genes

Publication

Hammond et al., 2010 - Cabin1 expression suggests roles in neuronal development

All Figures

Figures for Hammond et al., 2010


Figure Caption

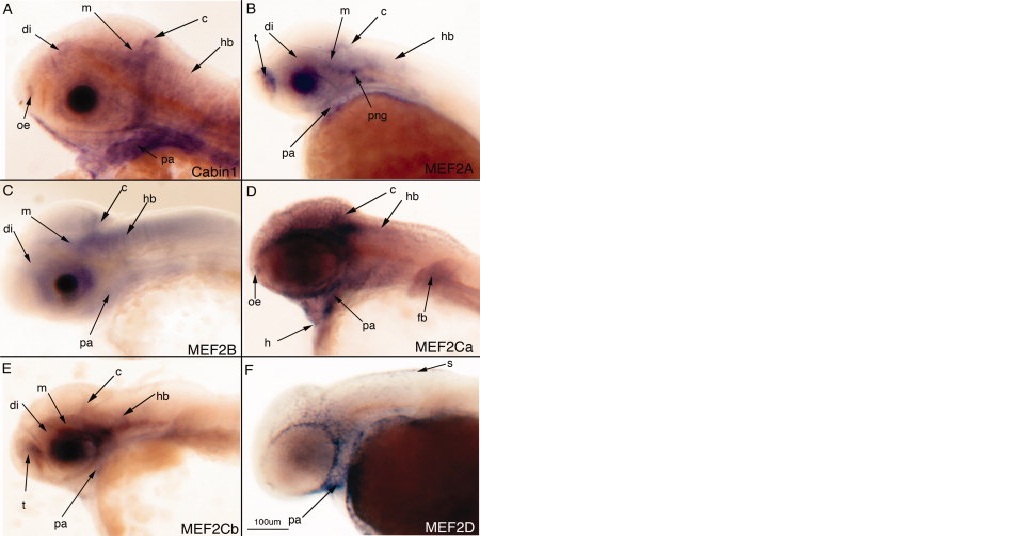

Fig. 5 Cabin1 and MEF2 expression overlaps in the central nervous system (CNS). MEF2 isoforms exhibit distinct but overlapping gene expression patterns. A: At 48 hours postfertilization (hpf), MEF2A-Cb all have some overlap in the CNS with Cabin1 (A), which is most prominent in the midbrain (m), cerebellum (c), and hindbrain (hb). A–F: Lateral views of the head at 48 hpf after whole embryo mRNA ISH using probes for the following: Cabin1 (A), MEF2A (B), MEF2B (C), MEF2Ca (D), MEF2Cb (E), and MEF2D (F). MEF2 expression at 24–72 hpf can be viewed in the Supplementary Material (Supp. Fig. S2). di, diencephalon; fb, fin bud; h, heart: oe, olfactory epithelium; pa, pharyngeal arches; png, peripheral nerve ganglia; t, telecephalon. Some embryos have been manually deyolked.
