Fig. 4

ID
ZDB-IMAGE-091217-108
Genes
Source
Figures for Hatler et al., 2009
Figure Caption

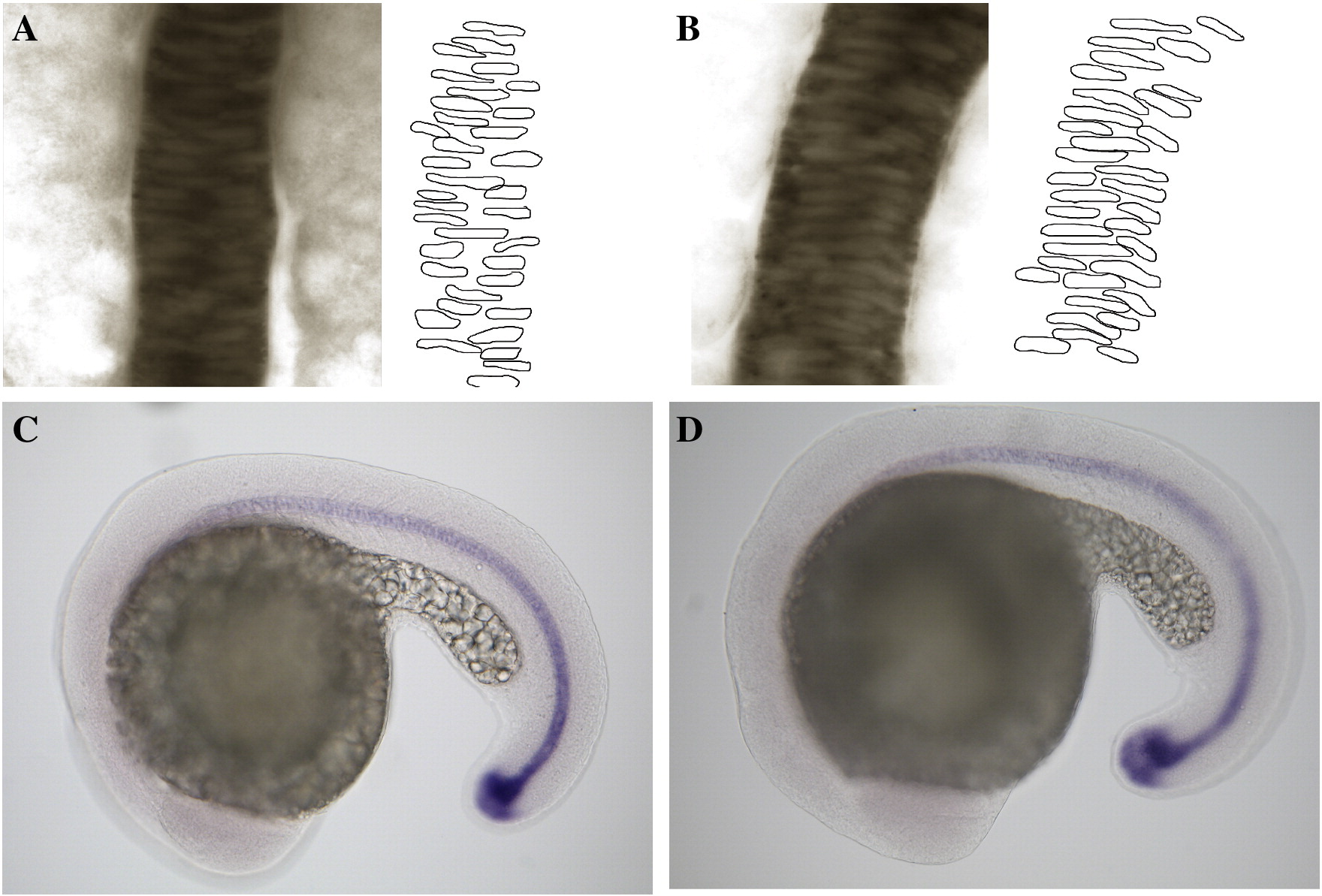

Fig. 4 Midline integrity is maintained in Cx43.4 morphants. In situ hybridization with a ntl probe (A–D). (A) Ten-somite stage uninjected and (B) Cx43.4 morphant embryos both have an intact, continuous midline. For clarity, individual nuclei were outlined in Photoshop (right of A and B). (C) Twenty-somite stage control and (D) Cx43.4-deficient embryos express ntl along the midline.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 336(2), Hatler, J.M., Essner, J.J., and Johnson, R.G., A gap junction connexin is required in the vertebrate left-right organizer, 183-191, Copyright (2009) with permission from Elsevier. Full text @ Dev. Biol.
