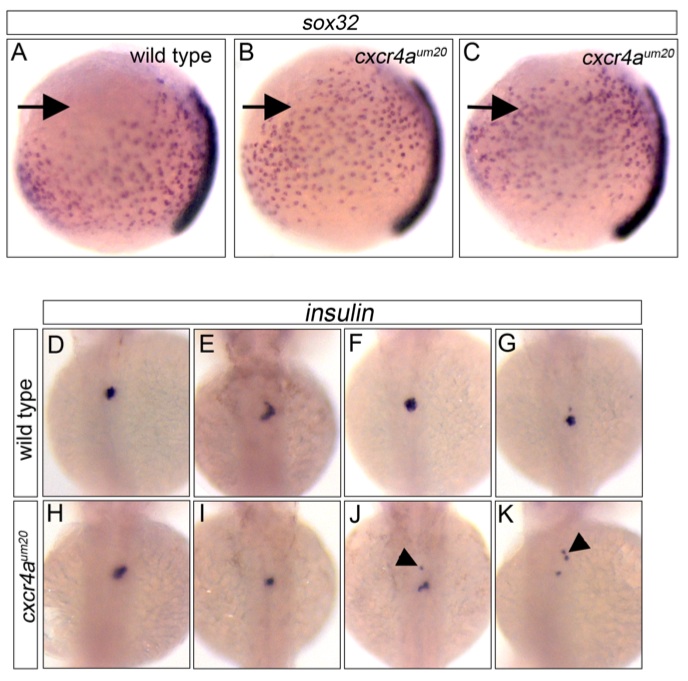

Fig. S6 Endoderm patterning defects in cxcr4a mutant embryos. A-C, sox32 in situ hybridization of 90% epiboly embryos. Dorsal is to the right, animal pole up. Note anterior displacement of endodermal cells in cxcr4a um20 mutant embryos (B, C, arrows) when compared to wild type embryo (A). D-K, insulin in situ hybridization at 55 hours post fertilization in 4 representative wild type embryos (D-G), compared to cxcr4a um20 mutant embryos (H-K). Note displaced insulin expressing cells (arrowheads) in J, K.
