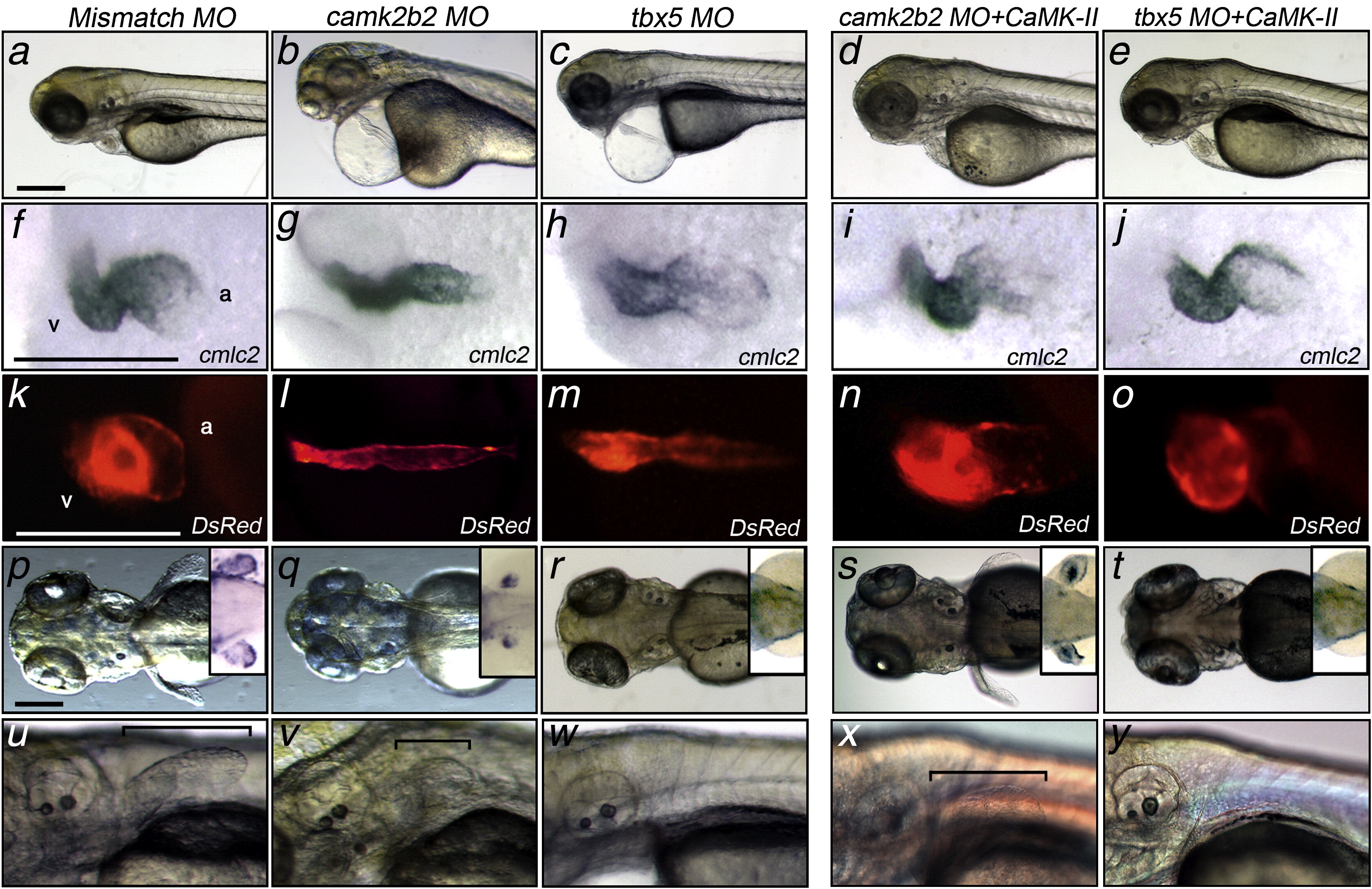

Fig. 3 Tbx5 heart defects can be rescued by CaMK-II. Wild type or cmlc2:DsRed transgenic embryos (k–o) were injected with the mismatch MO (5 ng), camk2b2 MO (2 ng) or tbx5 MO (5 ng) with or without 40 pg wild type δC CaMK-II cDNA and imaged at 72 hpf (a–e; k–y) or subjected to cmlc2 in situ hybridization at 48 hpf (f–j). Scale bar = 0.5 mm and anterior is to the left. In f and k, a = atrium and v = ventricle. In p–t, insets reveal bmp4 in situ hybridization patterns in the pectoral fin area. In u–y, brackets indicate extent of pectoral fin length.
