Fig. 3

ID
ZDB-IMAGE-090109-24
Source
Figures for Rai et al., 2008
Figure Caption

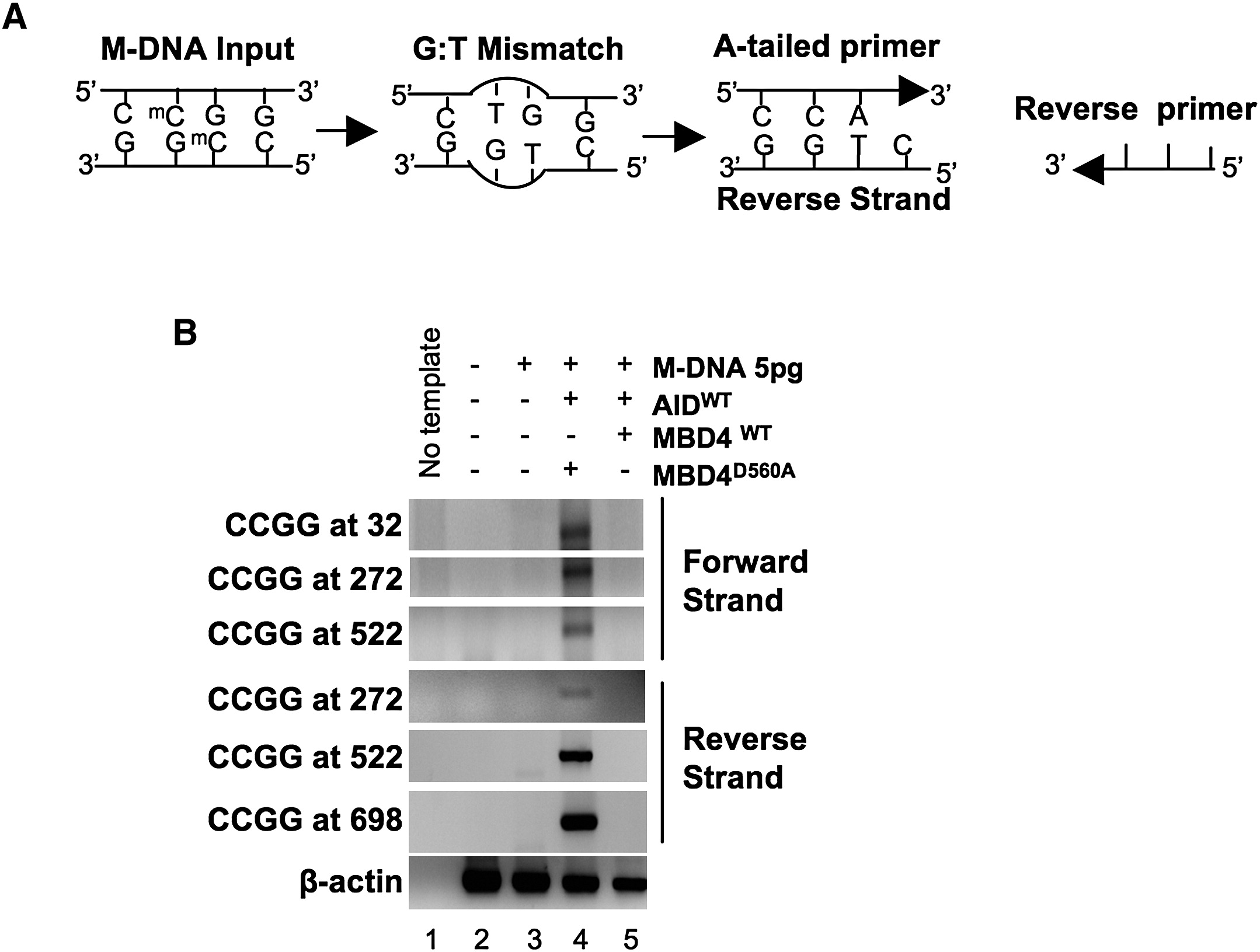

Fig. 3 A PCR Strategy to Detect a G:T Intermediate

(A) Schematic of the PCR reaction for thymine (CmeCGG > CTGG) detection at M-DNA HpaII/MspI sites using an A-tailed primer (only 3 of the ∼22 bases shown) with an adenosine at the 3′ end.

(B) Detection of a G:T mismatch on M-DNA by PCR. M-DNA, AID mRNA, and RNA encoding either wild-type or catalytically inactive hMbd4 (D560A) was injected at the single-cell stage and assessed at 13 hpf.
