Fig. 2

ID
ZDB-IMAGE-081021-182
Genes
Source
Figures for Galloway et al., 2005
Figure Caption

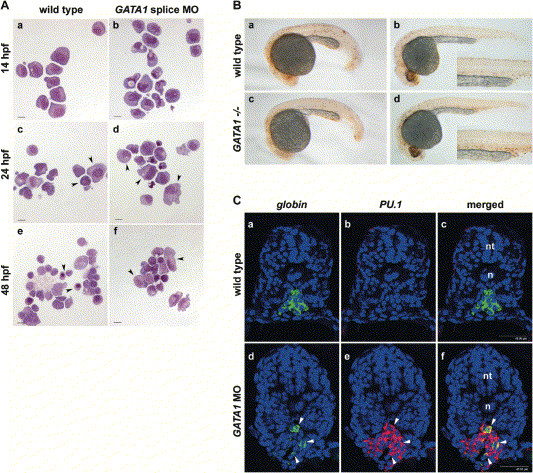

Fig. 2 Erythroid Precursors Are Converted into Myeloid Precursors in the Absence of Gata1(A) gata1-gfp cells from wild-type (a) and gata1 splice MO-injected (b) embryos at 10 somites (14 hpf) resemble hematopoietic precursors. At 24 hpf, most wild-type gata1-gfp cells resemble proerythroblasts (c, arrowheads), but myeloid cells with indented nuclei are observed. Cells from gata1 splice MO-injected embryos have myeloid features such as vacuoles and indented nuclei (d, arrowheads). Many erythrocytes and proerythroblasts are isolated from 48 hpf wild-type embryos (e, arrowheads) as well as a few myeloid cells. Cells from 48 hpf gata1 splice MO-injected embryos have vacuoles and indented nuclei (f, arrowheads), suggesting that they are myelomonocytes (scale bars are 10 μm).(B) Wild-type (a) and vlt mutant (c) embryos at 22 hpf have similar numbers of TUNEL-positive cells. vlt mutant embryos have an approximate 2-fold increase in apoptosis in their ICM region (d, inset) compared to their wild-type siblings (b, inset) at 28 hpf.(C) Confocal imaging of transverse sections of DAPI-stained (blue) embryos that have undergone double in situ hybridization for βe1 globin (green) and pu.1 (red). Wild-type embryos express βe1 globin and not pu.1 in their ICM cells at 22 hpf (a–c). gata1 MO-injected embryos express both βe1 globin and pu.1 in their ICM cells at 22 hpf (d–f). Some cells coexpress (yellow) both genes (d–f, arrowheads; n, notochord; nt, neural tube; scale bar equals 40 μm).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 8(1), Galloway, J.L., Wingert, R.A., Thisse, C., Thisse, B., and Zon, L.I., Loss of gata1 but not gata2 converts erythropoiesis to myelopoiesis in zebrafish embryos, 109-116, Copyright (2005) with permission from Elsevier. Full text @ Dev. Cell
