Fig. 6

ID

ZDB-IMAGE-081007-6

Genes

Antibodies

Ab-F59

Publication

Huang et al., 2008 - Mypt1-mediated spatial positioning of Bmp2-producing cells is essential for liver organogenesis

All Figures

Figures for Huang et al., 2008


Figure Caption

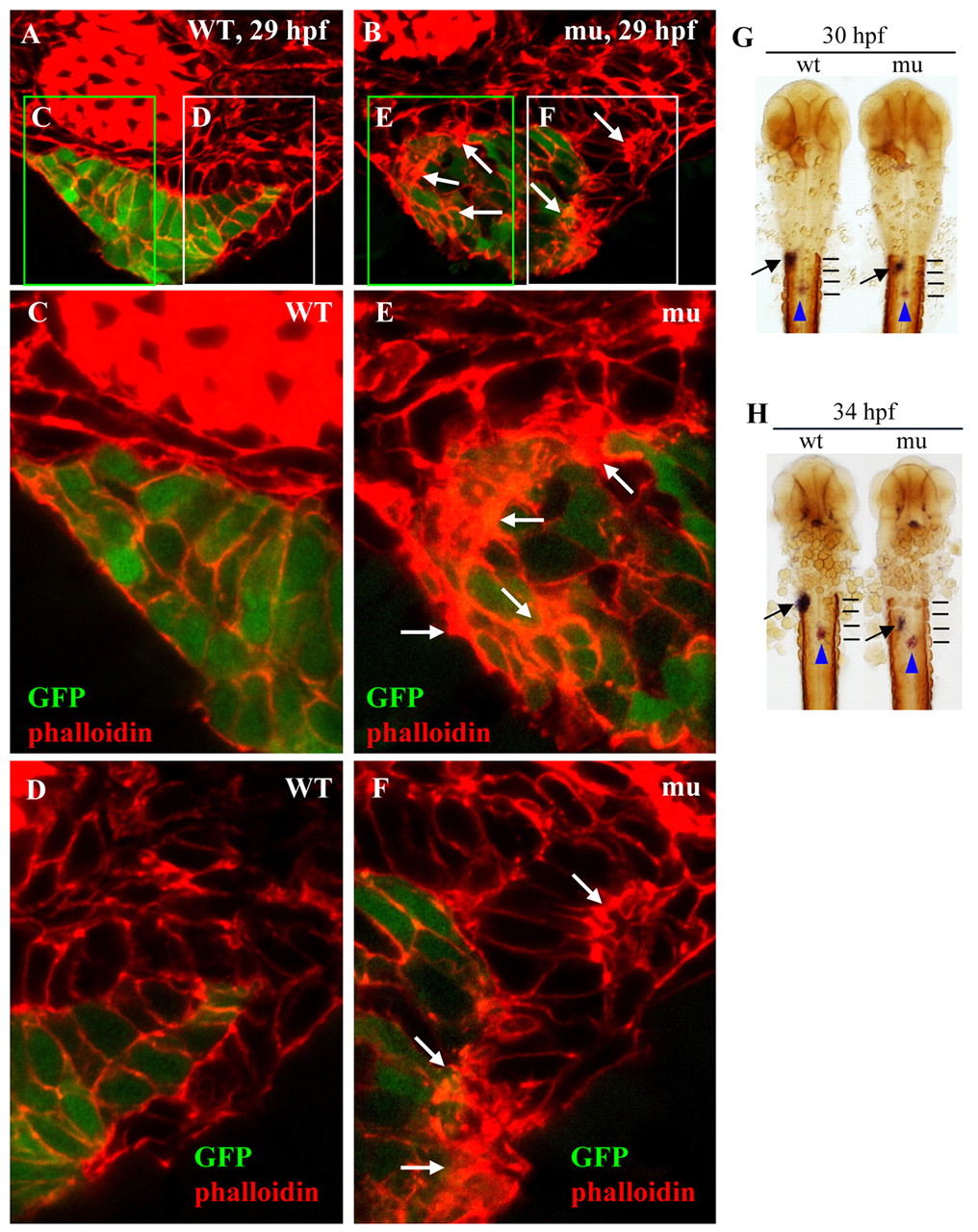

Fig. 6 The mypt1^sq181 mutation alters actin assembly in LPM and endoderm cells and causes a posterior shift of the liver primordium. (A,B) Cross-sections from wild-type (WT) and mutant (mu) zebrafish embryos in the Tg(gutGFP)^S584 background (green) stained with phalloidin (red). (C-F) High-magnification views of boxed regions in A (C,D) and B (E,F) showing abnormal aggregations of actin filaments (arrows) and cell organization in the mutant endoderm (C versus E) and LPM (D versus F) cells. (G,H) WISH using insulin (for islet, blue arrowheads) and hhex (for liver, arrow) probes, and F59 antibody (for somites, horizontal black lines) on mutants (mu) and wild-type (wt) embryos.

Figure Data

Expression / Labeling details

Phenotype details
