Fig. 6

ID

ZDB-IMAGE-080909-19

Genes

spry1

Publication

Komisarczuk et al., 2008 - Enhancer detection and developmental expression of zebrafish sprouty1, a member of the fgf8 synexpression group

All Figures

Figures for Komisarczuk et al., 2008


Figure Caption

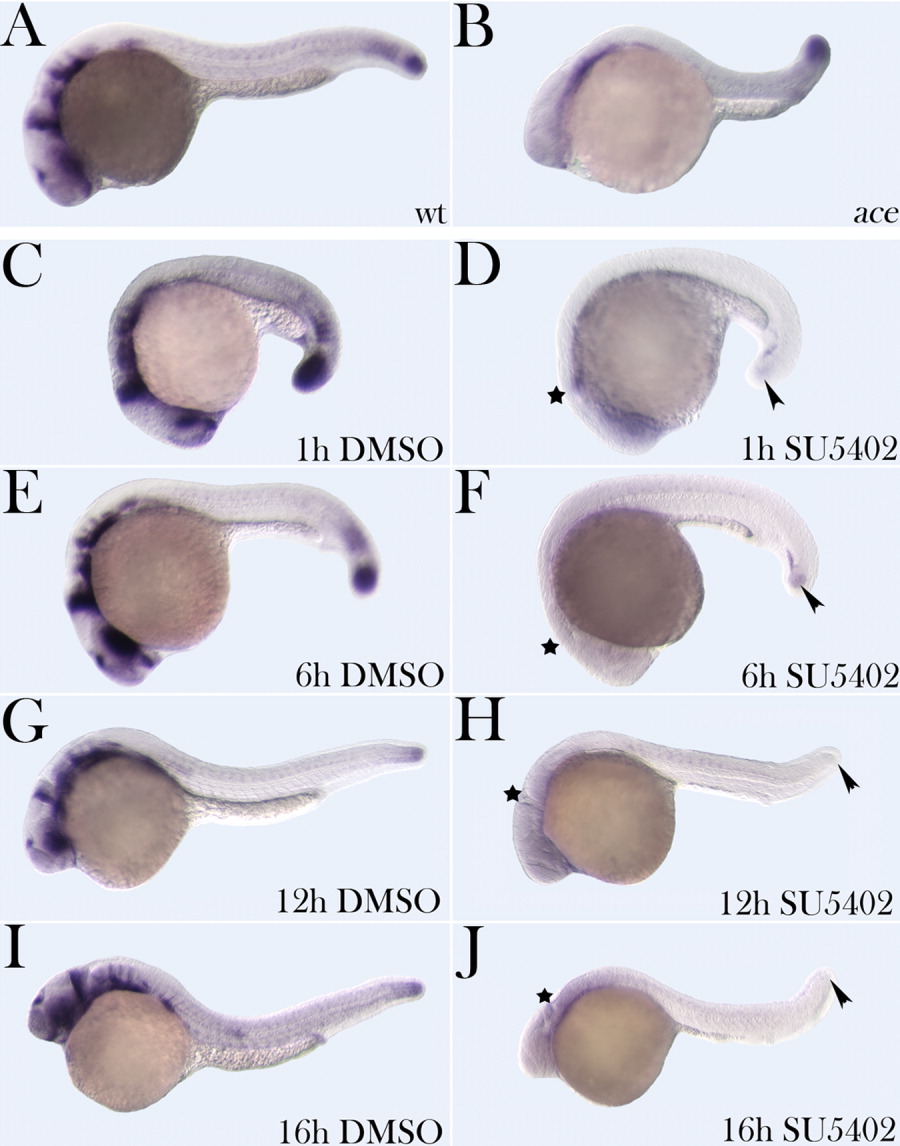

Fig. 6 Sprouty1 and the Fgf signaling pathway. A,B: Twenty-four hour postfertilization stage. Loss of fgf8a in ace inhibits spry1 expression. In situ hybridization with spry1 antisense probe in wild-type (wt) (A) and ace fgf8a^-/- mutant (B) embryos. C-J: Wild-type embryos treatment with the inhibitor of FGF signaling SU5402 commenced at the18-somite stage. Incubation for 1 hr (C,D), 6 hr (E,F), 12 hr (G,H), and 16 hr (I,J). The asterisk indicates midbrain-hindbrain boundary (MHB) position and arrowhead the tail tip. Expression of spry1 is inhibited after 1 hr of incubation in most of the domains, and after 16 hr of incubation there is no detectable expression of spry1.
