Fig. 3
- ID
- ZDB-IMAGE-071019-16
- Genes
- Publication
- Callander et al., 2007 - Expression of multiple class three semaphorins in the retina and along the path of zebrafish retinal axons
- All Figures
- Figures for Callander et al., 2007
|
Figure Caption

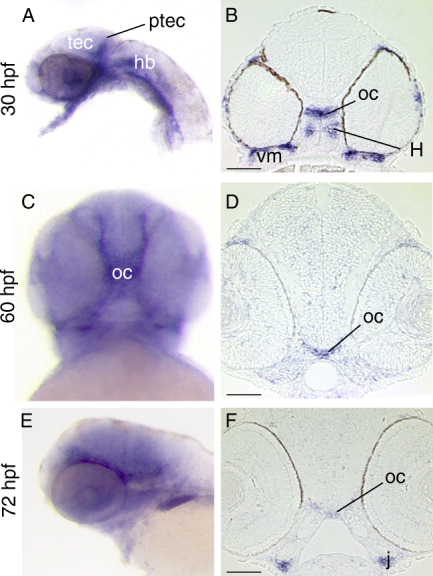

Fig. 3 Expression of sema3E. Lateral (A,E) and ventral views (C) of whole-mount embryos, and stage-matched transverse sections (B,D,F). A: sema3E label is seen in the posterior tectum at 30 hpf. B,D,F: sema3E transcripts appear in the optic chiasm at 30 hpf and persist until 72 hpf. sema3E is seen in the ventral mesenchymal tissue (B), the hypothalamus (B), and the jaw (F). tec, tectum; hb, hindbrain; H, hypothalamus; j, jaw; oc, optic chiasm; ptec, posterior tectum; vm, ventral mesenchyme. Scale bars in B,D,F = 50 μm.
