Fig. 4

ID
ZDB-IMAGE-070925-17
Genes
Source
Figures for Varga et al., 2007
Figure Caption

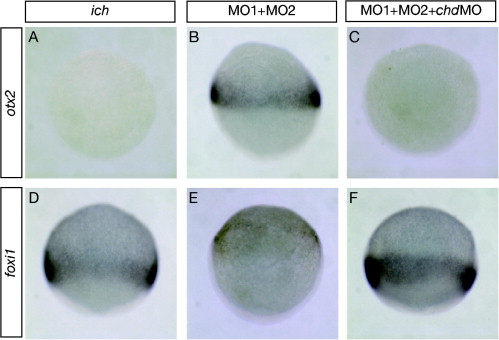

Fig. 4 chordin expression is required for otx2 expression and suppresses foxi1 expression in 10 hpf embryos inhibited in expression of both β-catenins. Untreated ich embryos (A and D) and ich embryos injected with βcat1MO and βcat2MO ([MO1 + MO2] (B and E), or additionally with chdMO (C and F) were assayed for expression of otx2 (A–C) or foxi1 (D–F). Inhibition of expression of the two β-catenins results in induction of the anterior neural marker otx2 at the expense of expression of the epidermal marker foxi1. The inhibition of Chd in such embryos prevents otx2 expression and restores the foxi1 expression. Concentrations of MOs injected were as in Fig. 3 and embryos are shown in lateral views.
