Fig. 1

ID
ZDB-IMAGE-070905-1
Genes
Source
Figures for Yin et al., 2007
Figure Caption

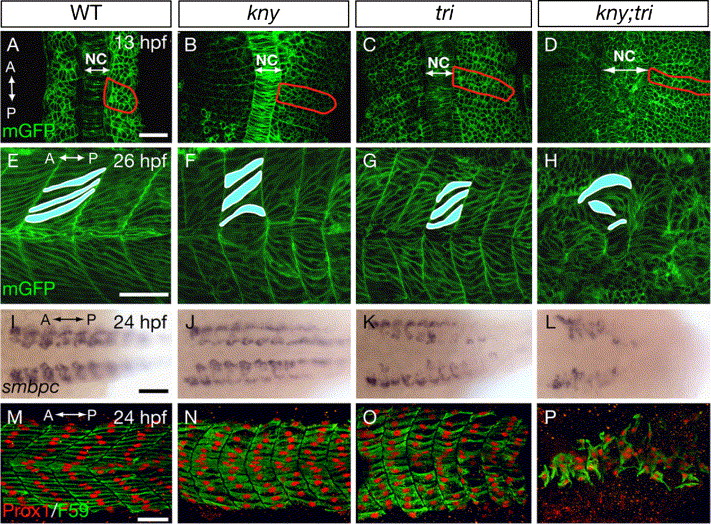

Fig. 1 Loss of Kny and Tri function impairs zebrafish slow muscle development. (A–D) Confocal images of dorsal views of embryos expressing mGFP. Red lines delineate the outline of the 5th somite. (E–H) Trunk region of day 1-embryos expressing mGFP, lateral views. (I–L) Dorsal views showing smbpc RNA expression in the slow muscles. (M–P) Lateral views of embryos stained with F59 antibody (green) that labels the cytoplasm of the slow muscle cells and Prox1 antibody (red) that labels their nuclei. A, anterior. P, posterior. NC, notochord. Scale bars: (A–H, M–P), 50 μm. (I–L), 100 μm.
