ZFIN Image: Jasuja et al., 2006, Fig. 5


Figure Caption

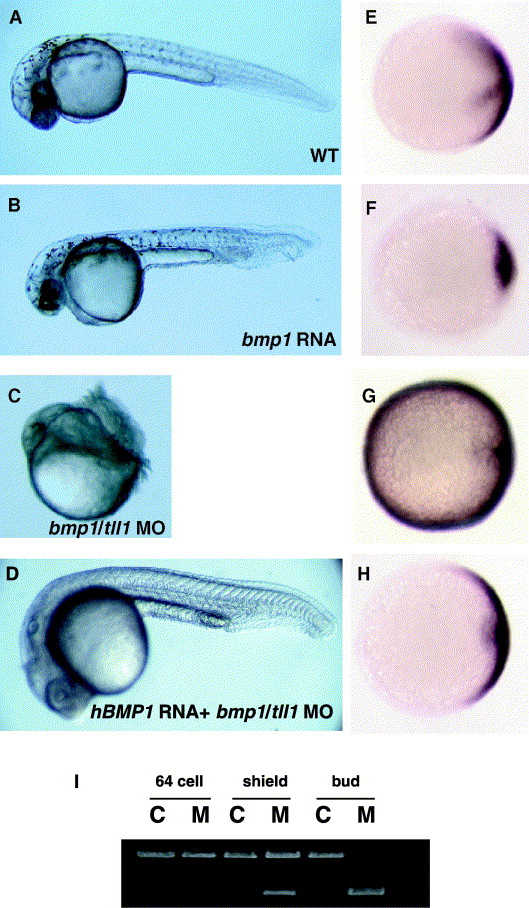

Fig. 5 Specific role for BMP1 in zebrafish dorsoventral patterning. (A and B) Embryos either uninjected (A) or injected (B) with bmp1 RNA are shown at 55 hpf. (C and D) Embryos injected with both bmp1 MO1 and tll1 MO in the absence (C) or presence (D) of human BMP1 RNA are shown at 24 hpf. (E–H) Embryos in which in situ hybridization for chordin has been performed are shown at 75% epiboly, to the right of embryos injected with the same RNAs and/or MOs. Animal views are shown for E–H, with dorsal to the right. (I) RT-PCR analysis is shown for control uninjected embryos (C) or embryos injected with bmp1 SP-MO (M).

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 123(7), Jasuja, R., Voss, N., Ge, G., Hoffman, G.G., Lyman-Gingerich, J., Pelegri, F., and Greenspan, D.S., bmp1 and mini fin are functionally redundant in regulating formation of the zebrafish dorsoventral axis, 548-558, Copyright (2006) with permission from Elsevier. Full text @ Mech. Dev.
