Fig. 5

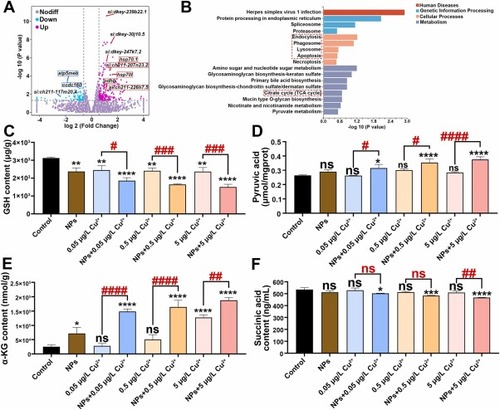

Analysis of DEGs volcano map, KEGG enrichment map and TCA cycle key indicators were detected. Differentially expressed genes volcano map (A), and KEGG pathway enrichment analysis map of differentially expressed genes was made. (B). Pyruvate content (C), α-KG content (D), succinic acid content (E), GSH content (F) was detected in different treatment groups (*/#P < 0.05, **/##P < 0.01, ***/###P < 0.001 and ****/####P < 0.0001). |
