Fig. 10

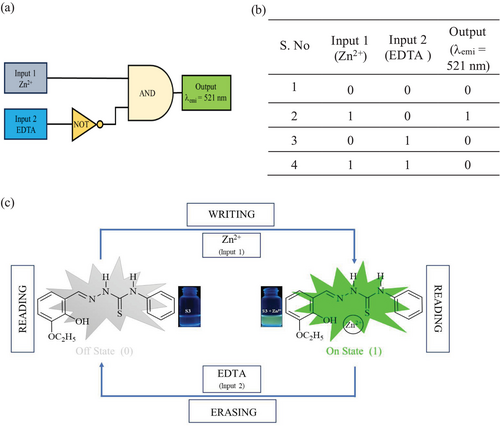

Pictorial representation of INHIBIT logic gate of S3 (a) and its corresponding truth table (b), and schematic illustration of the reversible logic-operation for the memory element featuring ‘write-read-erase-read’ ̀ processes utilizing Zn2+ cations and EDTA. |
