Fig. 2

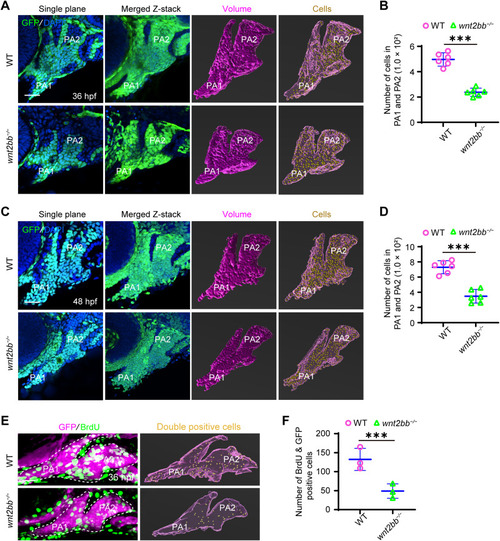

Inactivation of Wnt2bb impairs chondrocyte precursor proliferation. A and C: Single-plane and merged z-stack images of WT and wnt2bb?/? embryos with a Tg(fli1:EGFP) background at 36 hpf (A) and 48 hpf (C). Embryos were fixed and stained with anti-GFP antibodies. DAPI was used to label nuclei. Imaris software was applied to generate 3D volumes of pharyngeal arches 1 and 2, as well as virtual puncta representing cells in pharyngeal arches 1 and 2. B and D: Quantification of cell numbers in pharyngeal arches 1 and 2 of WT and wnt2bb?/? embryos at 36 hpf and 48 hpf using Imaris software (n = 6). E: Cell proliferation assays in WT and wnt2bb?/? embryos with a Tg(fli1:EGFP) background at 36 hpf (E). Virtual puncta represent BrdU incorporated cells in pharyngeal arches 1 and 2. F: Quantification of BrdU incorporated chondrogenic precursors in E (n = 3). ???, P < 0.001 (student's t-test). WT, wild-type; PA, pharyngeal arch; hpf, hours post fertilization. Scale bar, 20 ?m (A, C, E).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Journal of genetics and genomics = Yi chuan xue bao, , Guo, X., Yang, L., Wang, Y., Yuan, M., Zhang, W., He, X., Wang, Q., Wnt2bb signaling promotes pharyngeal chondrogenic precursor proliferation and chondrocyte maturation by activating Yap expression in zebrafish, , Copyright (2024) with permission from Elsevier. Full text @ J. Genet. Genomics
