FIGURE

Figure 4

ID

ZDB-FIG-250127-191

Publication

Ren et al., 2024 - Knockout of dhx38 Causes Inner Ear Developmental Defects in Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Figure 4

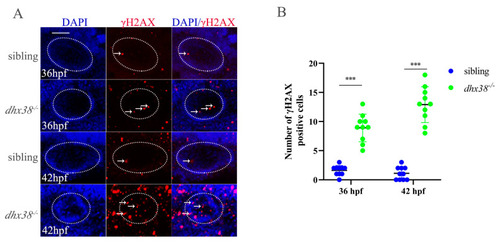

Analysis of the accumulation of DNA damage in inner ears of dhx38⁻^/− mutants: (A) Whole-mount immunofluorescence analysis using the anti-γH2AX antibody in inner ear regions of siblings and dhx38⁻^/− at 36 hpf and 42 hpf. The white arrows indicate the signal spots. n = 10 for each panel. Scale bar: 50 µm. (B) Quantitative analysis of the γH2AX-positive cells exhibited in the inner ear (the white, dotted, oval area) region in (A). The data are presented as the mean ± SD. ***, p < 0.001.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	dhx38^hzu20/hzu20
Observed In:	inner ear nuclear chromosome
Stage Range:	Prim-25 to Long-pec

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biomedicines
