FIGURE 7

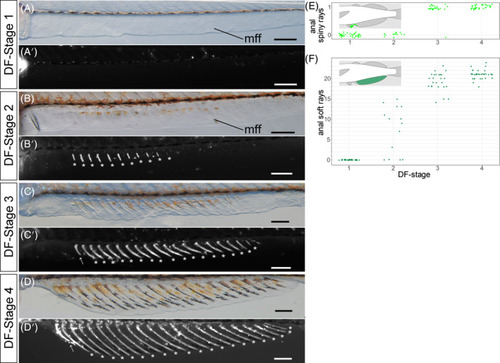

Overview of anal fin development in postembryonic Melanotaenia praecox stages. (A–D′) Lateral views of DF Stages: 1 (A,A′), 2 (B,B′), 3 (C,C′), and 4 (D,D′). Bright field (A–D) and grayscale fluorescent (A′–D′) images. mff, median fin fold. Asterisks, soft rays; arrows, spiny rays. (E,F) Relationships between DF stage and number of spiny (E) or soft (F) rays. To reduce data overlap, all points in (E,F) are jittered along x and y axes. Schematic drawings in each graph (E,F) indicate the position of each type of fin ray. All scale bars: 200 μm.
