Fig. 1

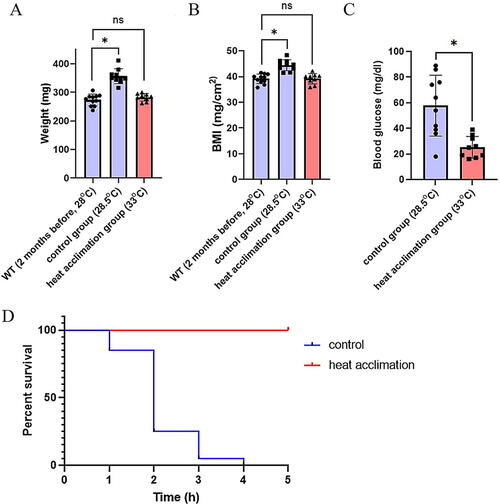

Heat acclimation causes physiological changes in zebrafish. (A) Average body weight. (B) Average BMI before and after treatment. (C) The average blood glucose levels of two groups of zebrafish. (A–C) n ≥ 9 per group, repeat = 3. *indicates p < 0.05, and ns indicates p > 0.05. (A–C) WT zebrafish were maintained in a conventional system at 28°C, whereas the control and the heat acclimation groups were kept in separate fish tanks in water baths at 28°C and 33°C, respectively. (D) Adult zebrafish heat tolerance test at 39°C. The representative survival curve was drawn using the GraphPad Prism 8 software. n = 20 per experiment, repeat = 2. BMI, body mass index; WT, wild type.
