Fig. 4

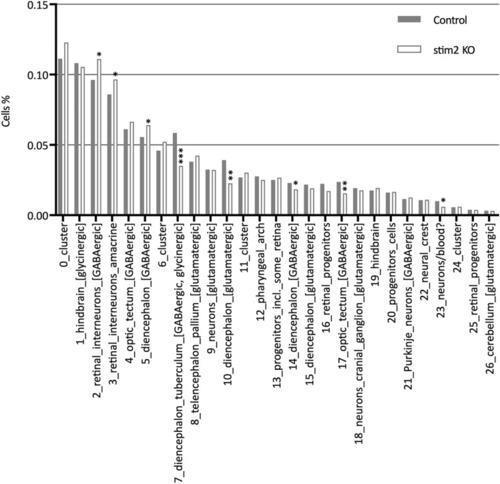

Cell proportions in stim2 KO zebrafish (white bars) and control (gray bars) clusters. Asterisks mark clusters with significant changes in cell proportions in stim2 KO relative to control. Significance of change in cells proportions in clusters were calculated using t-test with Benjamini and Hochberg FDRs (False Discover Rates, *FDR < 0.05, **FDR < 0.01, ***FDR < 0.001). The proportion of cells was calculated using the propeller function (speckle v. 1.2 package) with arcsin square root transformation (see “Materials and methods”).
