Fig. 6

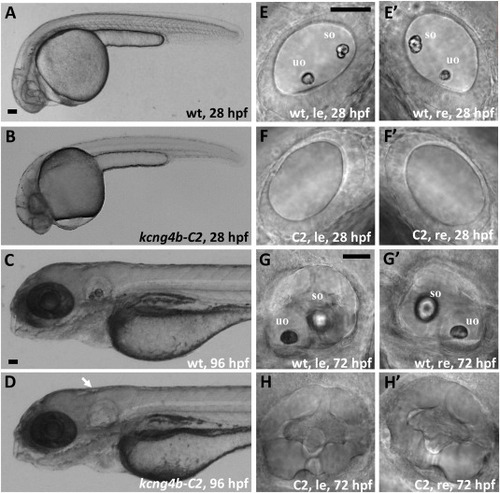

kcng4b-C2 mutation causes an absence of otoliths. A, B – 28 hpf, arrow - ear; C, D – 96 hpf; E-H – ears at 28 (E, F) and 72 hpf (G, H), le and re – left and right ears, uo and so – utricular and saccular otoliths, correspondingly. All images are in lateral view. A, C, E, G – wild type, B, D, F, H – kcng4b-C2. Abbreviations: C2 - kcng4b-C2; hpf - hours post fertilization; le - left-hand side ear; re - right-hand side ear; wt - wildtype. Scale bar = 50 μm. |
