Figure 3

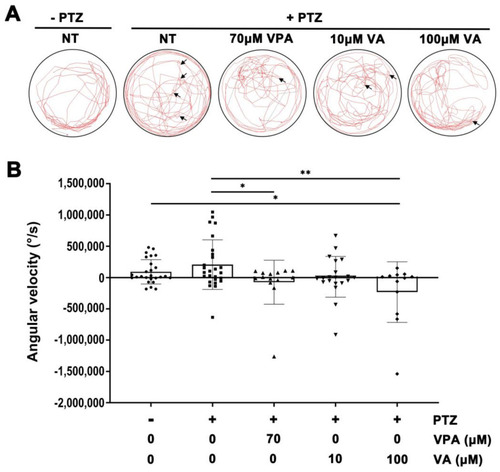

Analysis of validamycin A’s efficacy in mitigating locomotive changes in adult zebrafish via measurements of angular velocity. (A) The red lines and arrows indicate the locations of the zebrafish and abrupt changes in movement direction during a 1-min video recording in a 90 mm Petri dish. (B) Angular velocity was calculated. The sample size for each experimental group ranged from 12 to 26 fish. The collected data are presented as the mean ± standard error of the mean (S.E.M.). Student’s t-test was utilized for the statistical analysis to determine the significance of the observed differences. * p < 0.05, ** p < 0.01.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Conditions:	chemical treatment by environment: pentetrazol chemical treatment by environment: validamycin A
Observed In:	locomotory behavior
Stage:	Adult
