Fig. 6

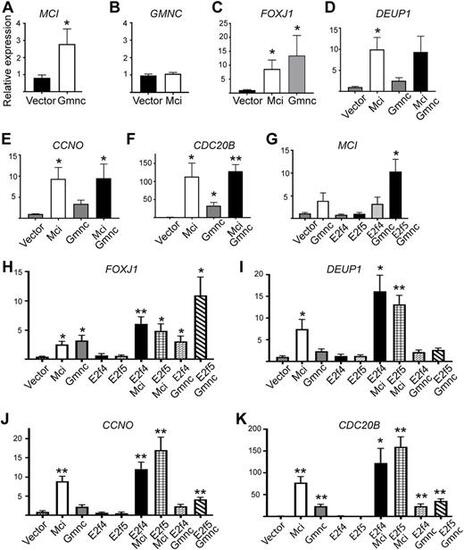

RT-qPCR analysis of ciliary transcription factor and DD pathway gene expression levels in response to overexpression of MCI, GMNC and E2F proteins in HEK293T cells. (A-K) Relative expression levels are plotted on the y-axis; overexpression conditions are indicated on the x-axis. Data are mean±s.e.m. Analysis was carried out on three independent biological replicates. *P≤0.05, **P≤0.01. |
