Figure 3

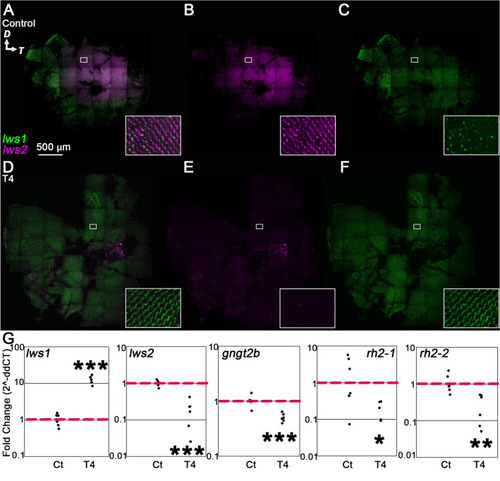

Plasticity of cone transcripts in response to 24-h T4 treatment. (A–F) Projections of representative whole, imaged retinas from fish treated with NaOH (control, A–C) or T4 (treated, D–F) followed by HCR in situ. Insets show indicated regions enlarged by 1400%. (A,D) All imaging channels merged. (B,E) lws2 (C,F) lws1. Note expanded lws1 domain and lack of lws2 mRNA in T4-treated retina. (G) qPCR of whole adult eyes, n = 6 for each group. (lws1) p = 1.3235E−07 (t-test). lws2) p = 0.0008 (t-test). (gngt2b) p = 0.0002 (t-test). (rh2-1) p = 0.0233 (t-test). (rh2-2) p = 0.0065 (t-test). D dorsal, T temporal.
