FIGURE

Figure 9

ID

ZDB-FIG-230828-45

Publication

Nieoczym et al., 2023 - In Silico Analysis, Anticonvulsant Activity, and Toxicity Evaluation of Schisandrin B in Zebrafish Larvae and Mice

Other Figures

(all 13)

All Figure Page

Back to All Figure Page

Figure 9

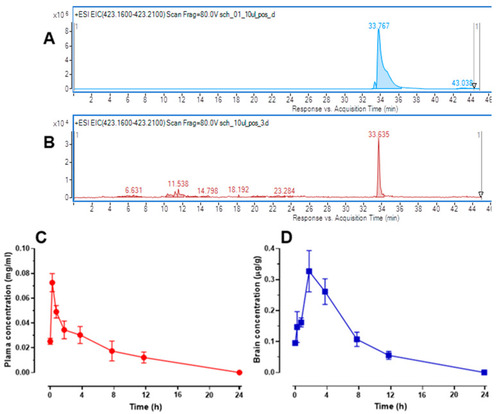

Mass chromatogram recorded in the positive ionization mode for the reference solution of schisandrin B (concentration 1 mg/mL, injection volume: 10 µL) (A); extracted ion chromatogram of schisandrin B in brain tissue recorded in the positive ionization mode (B), and changes in schisandrin B concentration in the blood plasma (C) and brain tissue (D) at 8 time points, i.e., 15 and 30 min as well as 1, 2, 4, 8, 12, and 24 h, after its ip administration at a dose of 50 mg/kg in mice. Plasma and brain concentrations of schisandrin B are presented as mean ± standard deviation (SD) (n = 6).
