FIGURE

Fig. 1

ID
ZDB-FIG-221211-62
Publication
Zhu et al., 2022 - Wuliangye Baijiu but not ethanol reduces cardiovascular disease risks in a zebrafish thrombosis model
Other Figures
All Figure Page
Back to All Figure Page

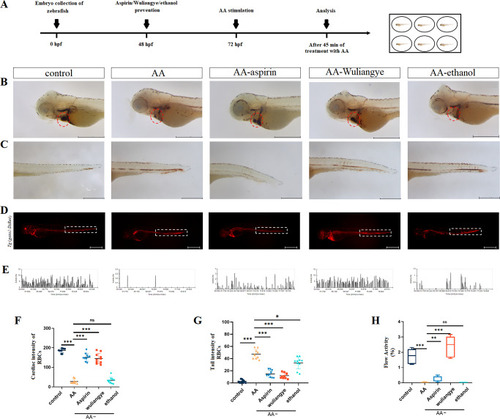

Fig. 1

Wuliangye alleviates thrombosis in the AA-treated zebrafish.

A Time line of aspirin/Wuliangye (0.3% ethanol, v/v), 0.3% ethanol protection and AA treatment. Representative images (B) and quantification (F) of o-dianisidine staining at the heart regions of control, AA, AA-aspirin, AA-Wuliangye, and AA-ethanol groups (n = 10). The heart regions are circled by red dotted line. C, G Representative images (C) and quantification (G) of o-dianisidine staining at the tail regions control, AA, aspirin, Wuliangye and ethanol treated (n = 10). Scale bar = 500 μm. All data are presented with mean ± standard deviation (solid bar). D Blood cell aggregation of Tg (gata1:DsRed) zebrafish in control group, AA group, aspirin group, Wuliangye group and ethanol group. E Blood flow velocity frequency diagram of zebrafish in control, AA, aspirin, Wuliangye and ethanol treated. H Boxplots of blood flow velocity statistics of control, AA, AA-aspirin, AA-Wuliangye and AA-ethanol groups, the boxes are outlined from the first quartile to the third quartile, the center line that goes through the box is the median, the whiskers (small lines) go from each quartile towards the minimum or maximum value. Compared with the control group; compared with the model group, ns for not significant, *P < 0.05, **P < 0.01, ***P < 0.001 (t test).
