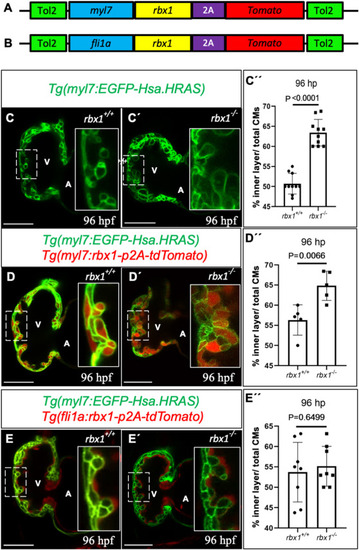

rbx1 overexpression in endothelial cells can rescue the multi-layered myocardial wall phenotype in rbx1 mutants (A-B) Cartoon of rbx1 overexpression transgene constructs under myocardial-specific (A) or endothelial-specific (B) promoters. (C–C′) Confocal images (mid-sagittal sections) of 96 hpf Tg(myl7:EGFP-Hsa.HRAS) rbx1+/+ (C) and rbx1−/− (C′) hearts. (D-E′) Overexpression of rbx1 in the endothelium but not the myocardium can rescue the myocardial wall phenotype in rbx1−/− larvae. (D-D′) Confocal images (mid-sagittal sections) of 96 hpf rbx1+/+ (D) and rbx1−/− (D′) hearts in the presence of the myl7:rbx1-p2a-tdTomato transgene. (E-E′) Confocal images (mid-sagittal sections) of 96 hpf rbx1+/+ (E) and rbx1−/− (E′) hearts in the presence of the fli1a:rbx1-p2a-tdTomato transgene. Magnified views of dashed areas shown in the right corners. (C"-E") Percentage of inner layer CMs relative to the total number of CMs comparing rbx1+/+ and rbx1−/− hearts having no rbx1 overexpression (C'’), and with overexpression of rbx1 in the myocardium (D'’) or endocardium (E'’). V: ventricle, A: atrium; scale bars, 50 μm. |
