Fig. 5

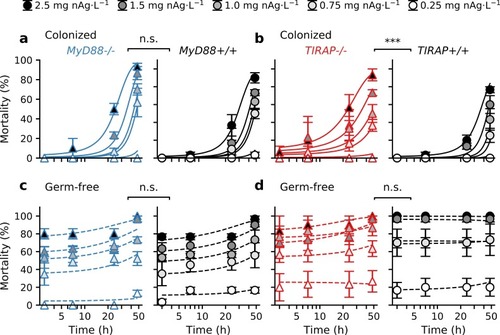

Fig. 5. TLR2 adaptor-dependent effects of colonizing microbiota on silver nanoparticle toxicity to zebrafish larvae. (a and c), Sensitivity of myd88-/- as compared to myd88+/+ zebrafish larvae, under microbially-colonized conditions (a) and germ-free conditions (c). (b and d) Sensitivity of tirap-/- as compared to tirap+/+ zebrafish larvae, under microbially-colonized conditions (b) and germ-free conditions (d). Asterisks indicate significant differences (n = 3). |
