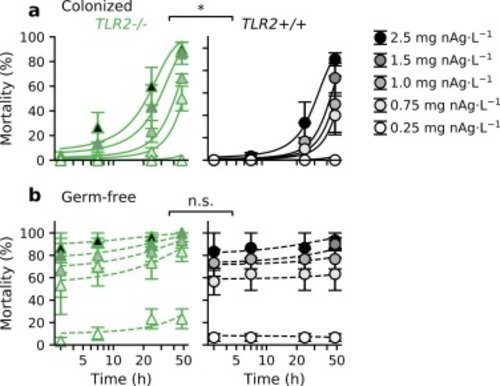

Fig. 4. TLR2-dependent effects of colonizing microbiota on silver nanoparticle toxicity to zebrafish larvae. Sensitivity of tlr2-/- as compared to tlr2+/+ zebrafish larvae under microbially-colonized conditions (a) and germ-free conditions (b). Asterisks indicate significant differences (n = 3).
