Fig. 2

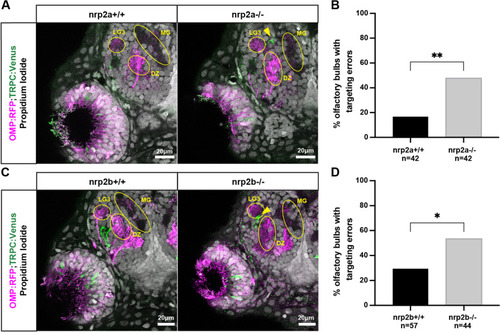

Nrp2a and nrp2b are required for normal protoglomerular targeting of TRPC2-class OSNs. A. Representative confocal sections of wild type and nrp2a mutant siblings. Yellow arrows indicate misprojecting TRPC2-class axons. B. The percentage of olfactory bulbs with targeting errors is higher in nrp2a mutants as compared to wild type siblings. C. Representative confocal sections of wild type and nrp2b mutant siblings. Yellow arrows indicate misprojecting axons. D The percentage of olfactory bulbs with targeting errors is higher in nrp2b mutants as compared to wild type siblings |
