Fig. 2

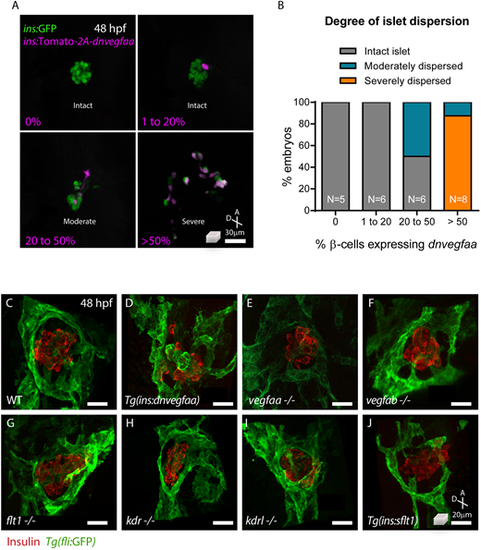

dnVegfaa exerts a dose-dependent effect on ?-cell dispersion. (A) ?-Cells (green) from 48?hpf Tg(ins:GFP) embryos with mosaic Tg(ins:dnvegfaa) expression. The percentage of ?-cells expressing dnvegfaa (magenta) is indicated, as is the severity of islet dispersion (intact, moderate or severe; white). (B) Quantification of embryos displaying varying severity of islet dispersion. (C-J) Immunostaining for insulin (?-cells, red) and endothelial cells (green) in 48?hpf Tg(fli:GFP) embryos, in combination with the indicated transgenic or mutant line, n=3-5 animals per genotype. Maximum intensity projections are presented. A, anterior; D, dorsal.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	bns282Tg; zf5Tg bns284Tg; y1Tg bns286Tg; y1Tg flt1^bns29/bns29; y1Tg kdr^bns32/bns32; y1Tg kdrl^{hu5088/hu5088}; y1Tg vegfaa^bns1/bns1; y1Tg vegfab^bns92/bns92; y1Tg
Observed In:	blood vasculature endocrine pancreas endocrine pancreas blood vasculature primary islet
Stage:	Long-pec

Phenotype Detail
