Fig 4

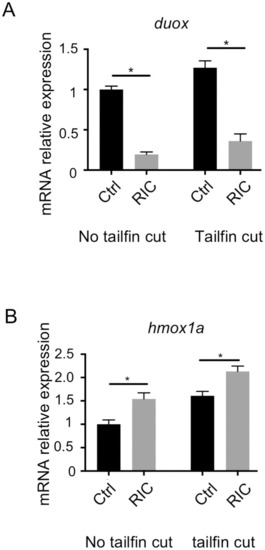

The downregulation of duox and upregulation of hmox1a are confirmed in RIC-treated fish.
(A) Real-time PCR data confirmed that the expression of duox at mRNA level is significantly down-regulated in RIC treated fish (p<0.05). (B) Real-time PCR analysis confirmed that the expression of hmox1a at mRNA level is significantly up-regulated in RIC treated fish (p<0.05). |
