Fig. 2

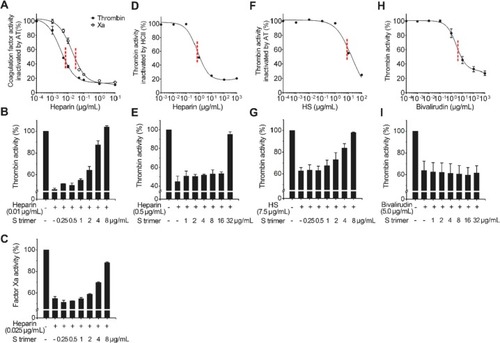

Anticoagulation activities of heparin, HS and bivalirudin and the inhibitory effect S protein of SARS-CoV-2. (A) Heparin inactivates thrombin and Xa activities through AT with IC₅₀ at ~0.01 μg/mL and ~0.025 μg/mL respectively. (B) S trimer inhibits the effect of AT on thrombin by competitive binding to heparin. (C) S trimer inhibits the effect of AT on Xa by binding to heparin. (D) Heparin inactivates thrombin activity through HCII with IC₅₀ at ~0.5 μg/mL. (E) S trimer inhibits the effect of HCII by binding to heparin. (F) HS inactivates thrombin activity through AT with IC₅₀ at ~7.5 μg/mL. (G) S trimer inhibits the effect of AT by binding to HS. (H) Bivalirudin inactivates thrombin activities with IC₅₀ at ~5 μg/mL. (I) S trimer cannot reverse inhibitory effect of bivalirudin on thrombin.
