Jamalpoor et al., 2021 - Cysteamine-bicalutamide combination therapy corrects proximal tubule phenotype in cystinosis

Other Figures

All Figure Page

Back to All Figure Page

H, I

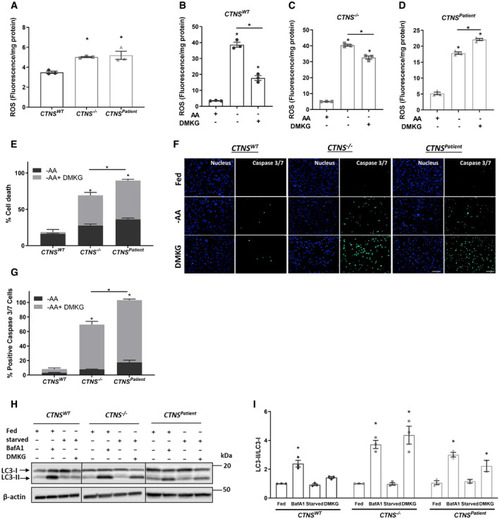

αKG is a key metabolite responsible for impaired autophagy and proximal tubule dysfunction in cystinotic proximal tubule cells

Relative reactive oxygen species (ROS/mg protein) production in control (CTNS^WT), CRISPR‐generated cystinotic cells (CTNS^−/−) and patient‐derived cystinotic (CTNS^Patient) cells under fed condition (n = 3).

B–D

ROS production (ROS/mg protein) in CTNS^WT, CTNS^−/− and CTNS^Patient cells upon starvation for 4 h in the presence and absence of DMKG (4 h), respectively (n = 3).

Viability test in starved (−AA) CTNS^WT, CTNS^−/− and CTNS^Patient cells in the presence or absence of DMKG (2 mM) for 24 h. Results are shown relative to the fed condition (n = 3).

F, G

Representative confocal micrographs (scale bars are 20 µm) and immunofluorescence analysis of caspase 3/7 activation in DMKG (2 mM)‐treated CTNS^WT, CTNS^−/− and CTNS^Patient cells for 24 h (n = 3).

H, I

Western blotting and densitometric analyses for LC3‐II/LC3‐I ratio in CTNS^WT, CTNS^−/− and CTNS^Patient cells cultured in the presence or in the absence of BafA1 (25 nM) and DMKG (2 mM) for 4 h, respectively (n = 3).

Data information: Data are expressed as mean ± SEM. P‐values < 0.05 were considered to be significant. One‐way ANOVA with Dunnett’s correction (A, B, C, D, E, G and I) or Unpaired t‐test (B, C, D, E and G). Exact P‐values and statistical tests are listed in Appendix Table S1.

Source data are available online for this figure.
