FIGURE

Figure 6

ID

ZDB-FIG-210707-85

Publication

Valu et al., 2021 - Hericium erinaceus (Bull.) Pers. Ethanolic Extract with Antioxidant Properties on Scopolamine-Induced Memory Deficits in a Zebrafish Model of Cognitive Impairment

Other Figures

(all 6)

All Figure Page

Back to All Figure Page

Figure 6

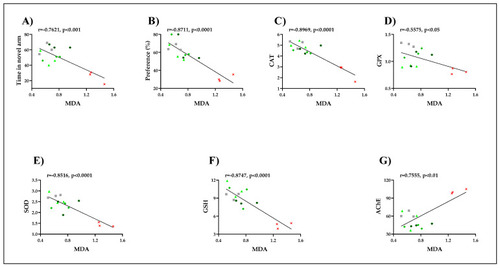

Correlation analyses between behavioral and biochemical parameters (Pearson?s correlation, n = 10): (A) Time in novel arm (% of total time) vs. MDA: r = ?0.7621, p < 0.001; (B) Preference (%) vs. MDA: r = ?0.8711, p < 0.0001; (C) CAT vs. MDA: r = 0.8969, p < 0.0001; (D) GPX vs. MDA: r = ?0.5575, p < 0.05; (E) SOD vs. MDA: r = ?0.8516, p < 0.0001; (F) GSH vs. MDA: r = ?0.8747, p < 0.0001; (G) AChE vs. MDA: r = ?0.7555, p < 0.01. Data expressed are time in the novel arm (% of total time), time in the novel arm (s), SOD (U/mg protein), CAT (U/mg protein), GPX (U/mg protein), GSH (µg GSH/µg protein), AChE (nmol/min/mg protein), and MDA (nmol/mg protein).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J Fungi (Basel)
