FIGURE

FIGURE 6

ID

ZDB-FIG-210428-45

Publication

Li et al., 2021 - Calcium State-Dependent Regulation of Epithelial Cell Quiescence by Stanniocalcin 1a

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 6

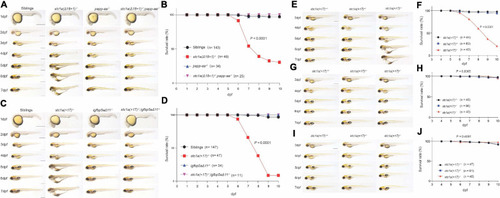

Perturbation of the Papp-aa-Igfbp-a-IGF signaling loop rescues the body edema and premature death in stc1a^{– /–} fish. (A,C) Gross morphology of fish of the indicated genotypes at the indicated stages. Lateral views with anterior to the left and dorsal up. Scale bar = 0.5 mm. (B,D) Survival curves. Embryos were raised in E3 embryo medium. Dead embryos were collected daily and genotyped individually. The survival curves of indicated genotypes and the total fish numbers are shown. P < 0.0001 by log-rank test. (E–J) Progeny of stc1a (+ 17)^+/– intercrosses were raised in E3 embryo media containing DMSO (E,F), 0.3 μM BMS-754807 (G,H) or 5 μM Rapamycin (I,J) starting from 3 dpf until the indicated time. Representative morphological views of the indicated genotypes at the indicated stages are shown in (E,G,I). Scale bar = 0.5 mm. P < 0.0001 by log-rank test. Dead fish were collected daily and genotyped individually. The survival curves of the indicated genotypes and the total fish numbers are shown in (F,H,J).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	igfbp5a^mi607/mi607 pappaa^p170/p170 stc1l^mi610/mi610 stc1l^mi611/mi611 stc1l^mi610/+ igfbp5a^mi607/mi607; stc1l^mi610/mi610 pappaa^p170/p170; stc1l^mi611/mi611
Conditions:	chemical treatment by environment: BMS-754807 chemical treatment by environment: dimethyl sulfoxide chemical treatment by environment: sirolimus
Observed In:	heart whole organism
Stage:	Days 7-13
