Fig. 2

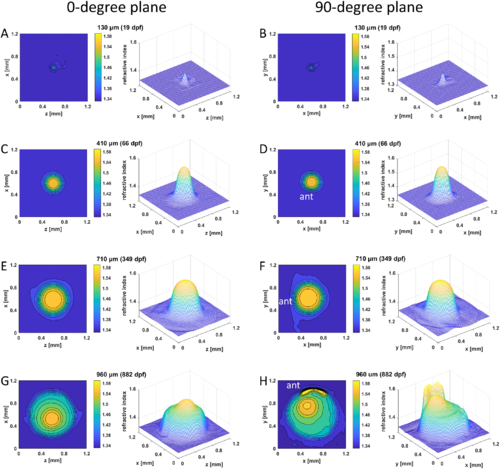

GRIN distributions in aqp0a−/− lenses. Two-dimensional contour plot (left panels) and 3D mesh plot (right panels) of GRIN distributions in aqp0a−/− lenses in the 0°plane, representing the equatorial plane (left column), and 90° plane, representing the axial plane (right column), of four selected lenses with diameters ranging from 130 to 960 µm at specified dpf. The magnitude of refractive index is color coded according to the color bar displayed on the right side of each contour plot. Anterior (ant) is the surface of the lens where light enters the lens. See Supplementary Figure S2 for higher magnifications of A and B.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mipa^{ir1090/ir1090} (AB)
Observed In:	lens
Stage Range:	Days 14-20 to Adult
