FIGURE

Fig. 1.

ID

ZDB-FIG-210403-35

Publication

Postlethwait et al., 2021 - The SARS-CoV-2 receptor and other key components of the Renin-Angiotensin-Aldosterone System related to COVID-19 are expressed in enterocytes in larval zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1.

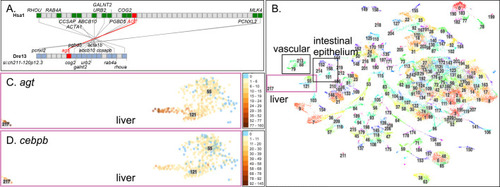

(A) The section of H. sapiens chromosome 1 (Hsa1) that contains AGT is conserved with the segment of D. rerio chromosome 13 (Dre13) that contains agt. (B) The 220 clusters from the zebrafish scRNA-seq Atlas (Farnsworth et al., 2020). Boxes indicate the liver, vascular endothelium, and intestinal epithelium clusters. (C) Cells in hepatocyte clusters c217, c121, and c121 express agt. Each dot represents a cell. Color intensity indicates expression level according to the scale at the right [the number of Unique Molecular Identifiers (UMIs; unique reads) in each individual cell that mapped to the gene of interest]. Blue cells are not expressing. (D) Expression of the Agt-regulator cebpb in larval liver cells.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biol. Open
