Fig. 7

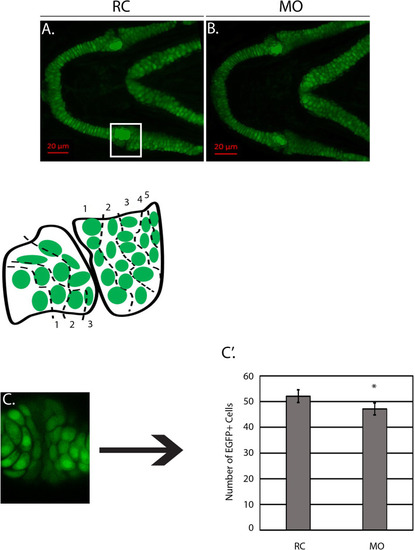

The number of Col2a1a⁺ cells is decreased at 4 DPF. a-bTg(col2a2a:EGFP) random control (RC) and morphant (MO) larvae (N = 10 per group) were mounted in agarose and confocal images were taken at 4 days post fertilization (DPF). c shows the representative region where cells were quantified with a corresponding schematic showing the parameters (3 rows left, 5 rows right). c′ Average number of Col2a1a⁺ cells counted across both groups (N = 10 per groups) at 4 DPF. P-value pertains to the statistically significant difference between the RC group and the MOs (***p = 1.44x^− 05)

Expression Data

Gene:	EGFP
Fish:	zf678Tg + MO4-hspg2
Knockdown Reagent:	MO4-hspg2
Anatomical Term:	chondrocyte
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	zf678Tg + MO4-hspg2
Knockdown Reagent:	MO4-hspg2
Observed In:	chondrocyte cranial neural crest neural crest cell differentiation quadrate-anguloarticular joint chondrocyte
Stage:	Day 4

Phenotype Detail
